This combo set includes 3670 1900KV 4P sensorless brushless motor and 120A ESC. It is perfect for 1/8 RC Car. The motor is built from high quality alloy,thus it can provide longer run timewith its high efficiency, high power and rotation speed. And the ESC is built with the highest quality components to ensure high efficiency operation. It features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity.

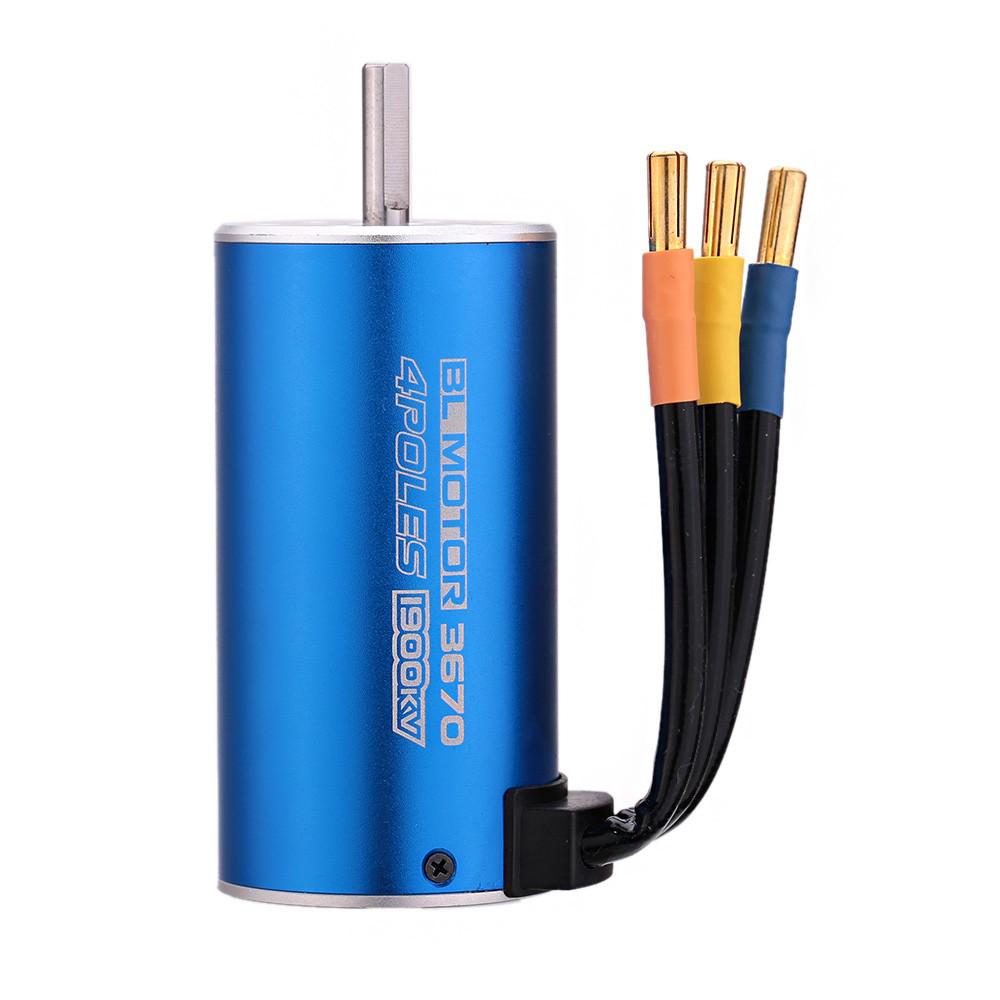

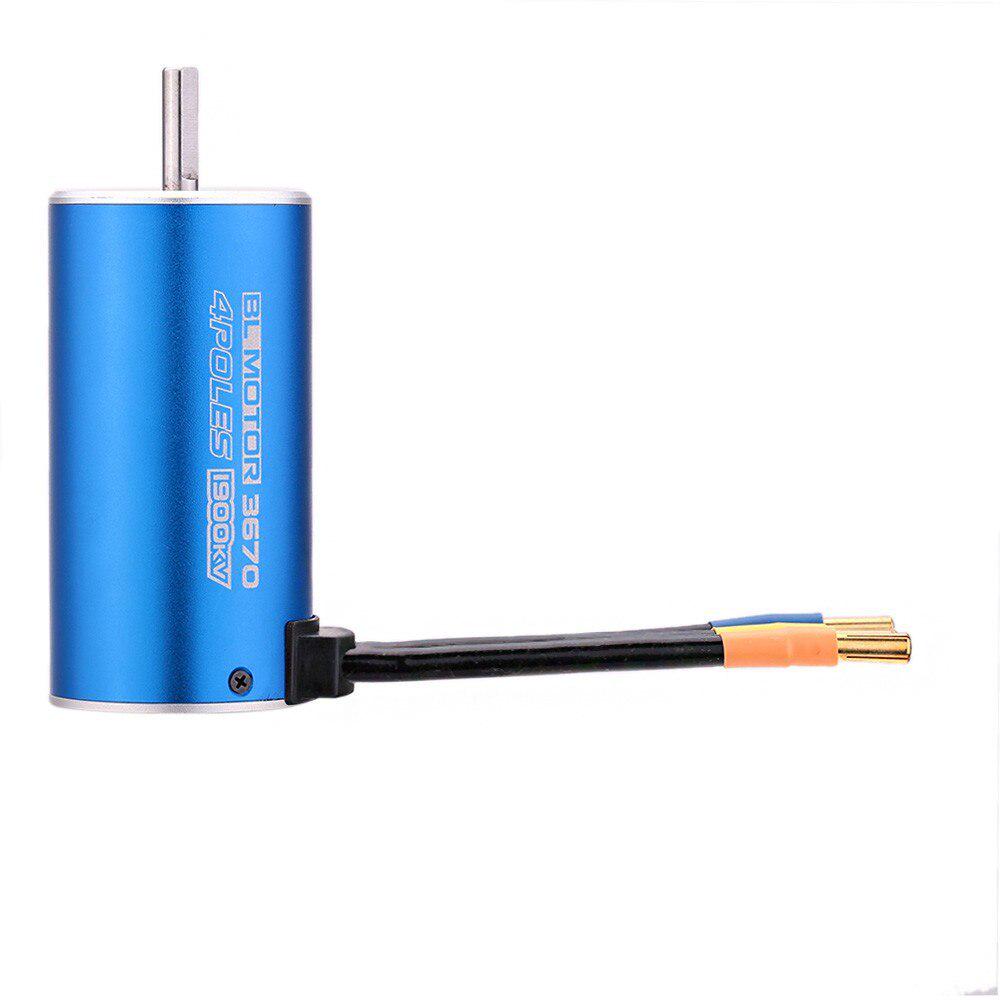

Motor
4 poles 12 slot Hi-torque motor design,CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency,high RPM ABEC5 oversized bearings.
Universal fits 1/8 1/10 brushless cars-multi-mounting system for M3 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Removable/replaceable,precision engineered for maximum energy conversion.
Specification:
RPM: 1900KV
Max Current: 60A
Max Watts: 1600W
Can Size: 3670
Sensored: No
Can Diameter: 36mm
Can Length: 70mm
Shaft Diameter: 5mm
Shaft Length: 17mm
Bullet Connector: 4mm
Weight: 273.8g/9.6oz

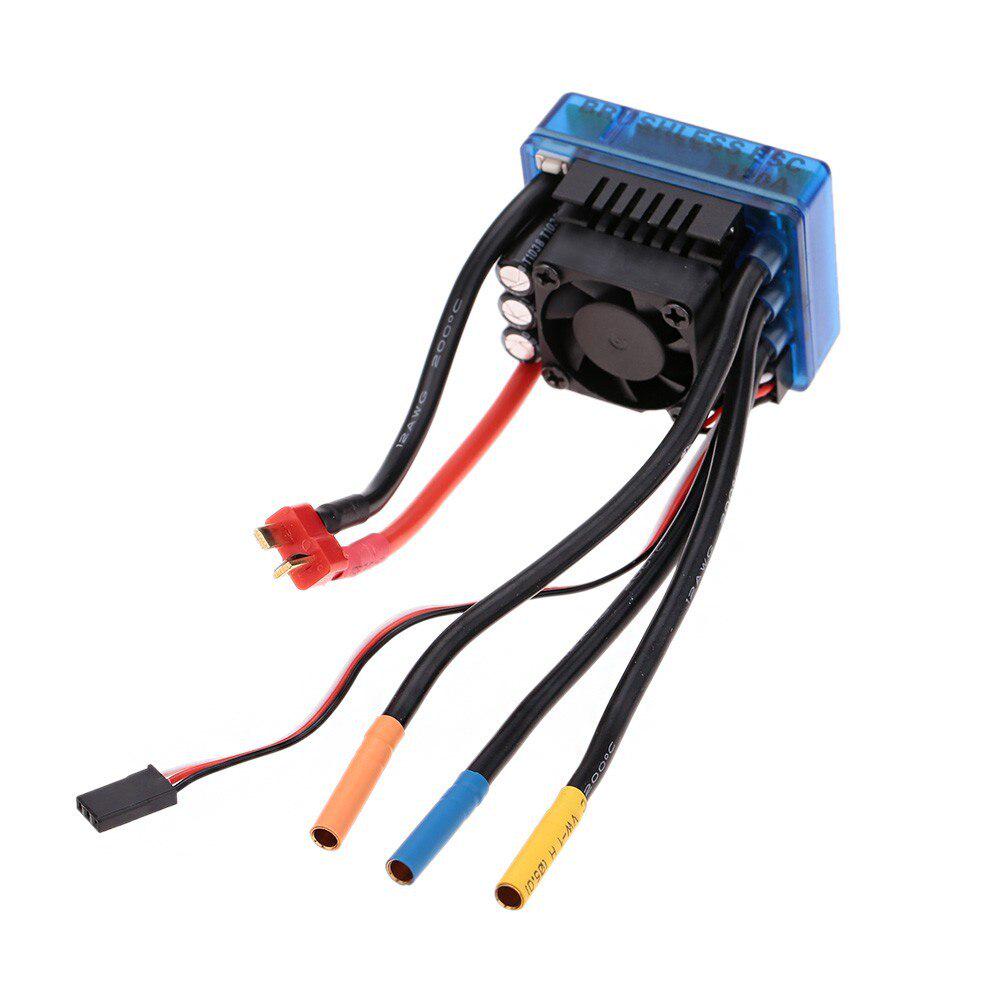

Electric Speed Controller
Features:
Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
Specifications:
Cont. Current: 120A
Burst Current: 600A/10sec
Battery: 2-4Cell Lipo / 4-18 Cell NiMh
SBEC: Yes
SBEC Output: 6.1V/3A
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
Size: 50*40*35mm(with out fan)
Weight: 116.7g /4.1oz
Package size: 9.5 * 8 * 6.2cm / 3.7 * 3.2 * 2.4in
Package weight: 427g/15oz
