The set has a 2845 3930KV brushless motor, a 35A ESC, which is for 1/14, 1/16, 1/18 RC car.
The motor is built from high quality aluminum alloy to provide longer run time.
And the ESC is built with the highest quality components to ensure high efficiency operation.
It features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity.
Features:
High Torque Efficiency: 4 pole high-torque motor design. High purity copper winding maximizes efficiency.
Fine Workmanship: CNC machined 6061 T6 billet aluminum heatsink can and adopt high RPM ABEC5 oversized bearings.
Universal Fit Multiple Protection: Fits 1/14,1/16, 1/18 RC car for M2.5 screws.
And supports low voltage cut-off protection, over-heat protection, throttle signal loss protection.
Removable Replaceable Rotor: Precision balanced rotor is removable and replaceable.
Excellent ESC: With ESC to enhance throttle response, acceleration, strong brakes and throttle linearity.

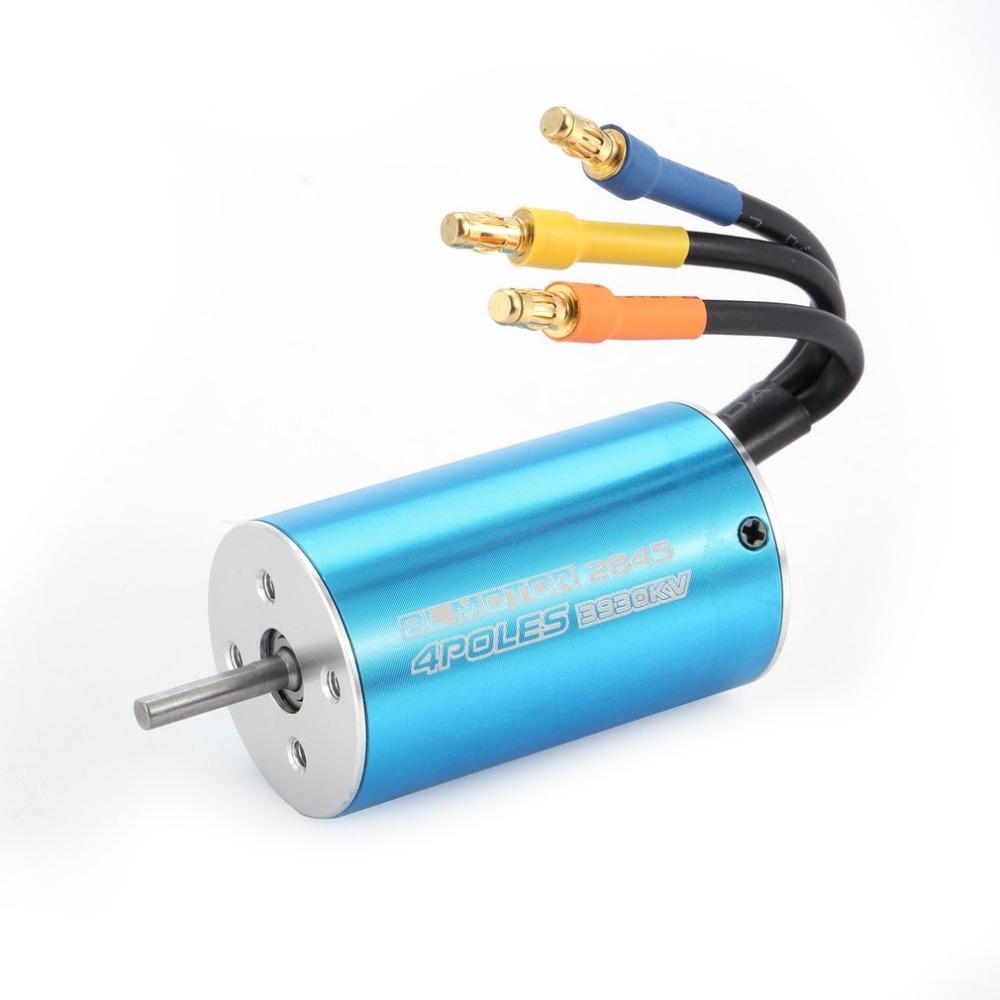

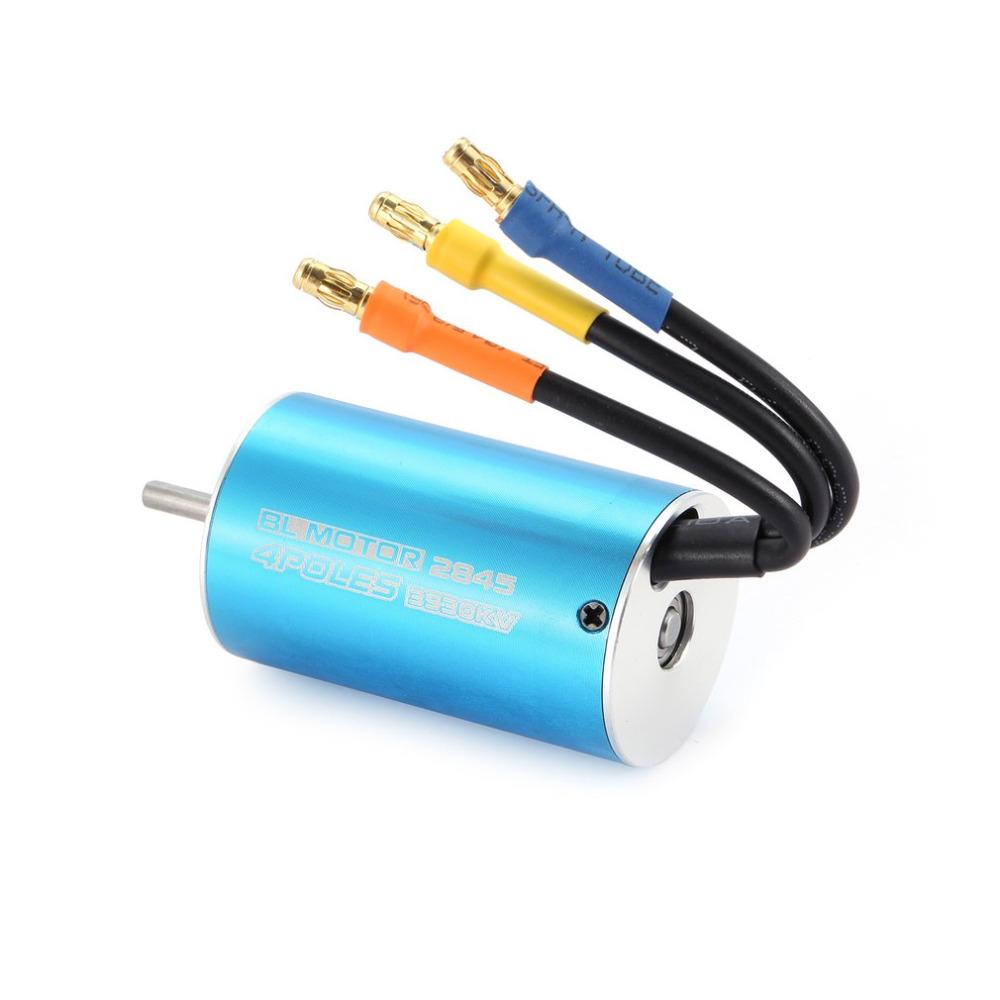

Motor Specifications:
Model: 2845
Material: Aluminum alloy
Color: blue
Watts: 800W
Max voltage: <13V
Max Amps: 60A
KV(RPM/Volt): 3930KV
Max RPM: 50000
IO: 2.4A
Rotor poles: 4
Resistance: 0.0196
Diameter: 28mm
Length: 45mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 3.5mm golden bullet connector

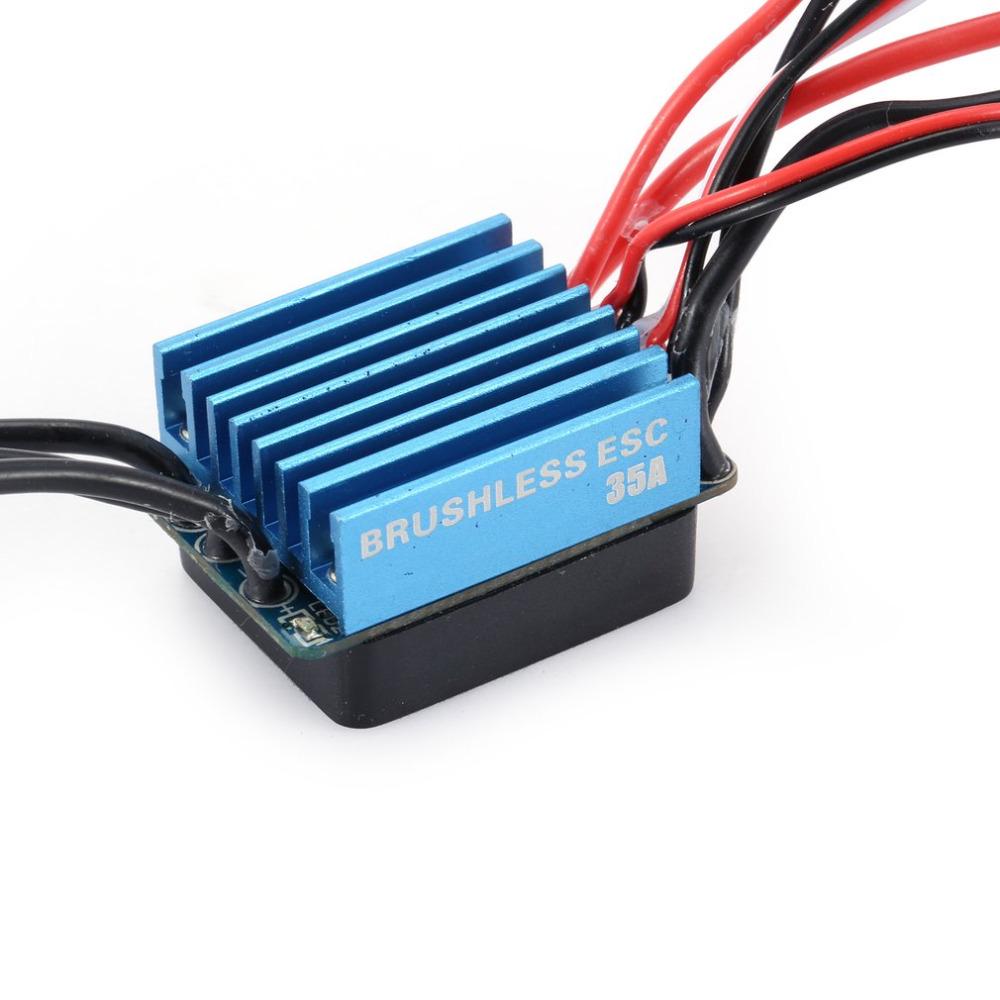

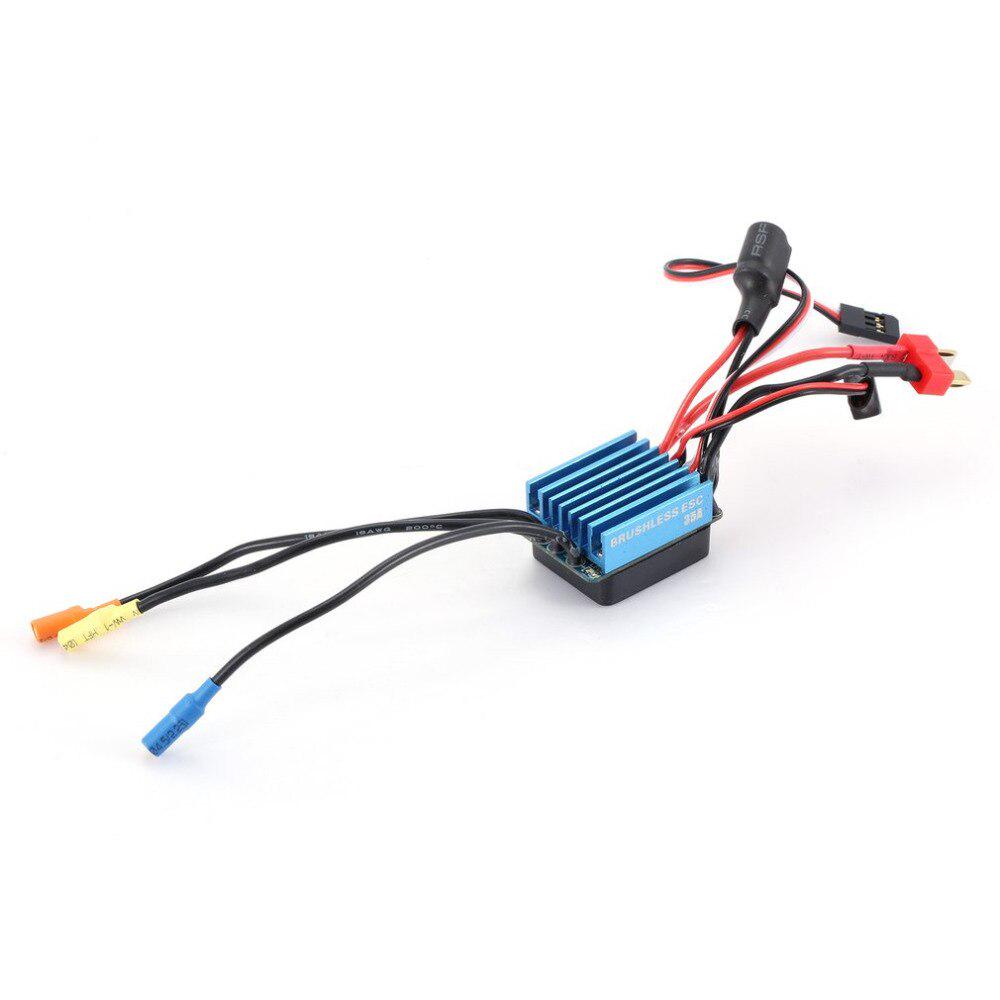

ESC Specifications:
Cont. Current: 35A
Burst Current: 120A
Battery: 2-3 Cells Lipo / 4-6 Cells NiMH
BEC Output: 5V/2A
Power Supply Plugs: T Male
Size: 37*25*19mm (Measuring without cable)
Package Information:
Package size: 8.2 * 6.4 * 5cm/ 3.2 * 2.5 * 2.0in
Package weight: 170g / 6.0oz
White box package
Package List:
1 * 2845 3930KV Sensorless Brushless Motor
1 * 35A Brushless Electric Speed Controller
