Feature:
1. [Small And Lightweight] Compact design, lightweight, will not burden the remote control car, can effectively improve the performance of your remote control car.
2. [Programming Port Design] Brushless motor and ESC kit, external programming port design, easy to connect the program card when setting the ESC, increase playability.
3. [Waterproof] The high quality components of this 120A ESC make it waterproof and dustproof, and durable (underwater work requires removing the cooling fan).
4. [One Key Operation] Use the "SET" button on the ESC to set the ESC with one key, and easily restore all parameters to the factory default settings, which is easy to use.
5. [Adjustable] RC car upgrade kit, 9 speed acceleration (punch) adjustment, from "soft" to "very aggressive" to suit different types of cars, tires and tracks.
Specification:

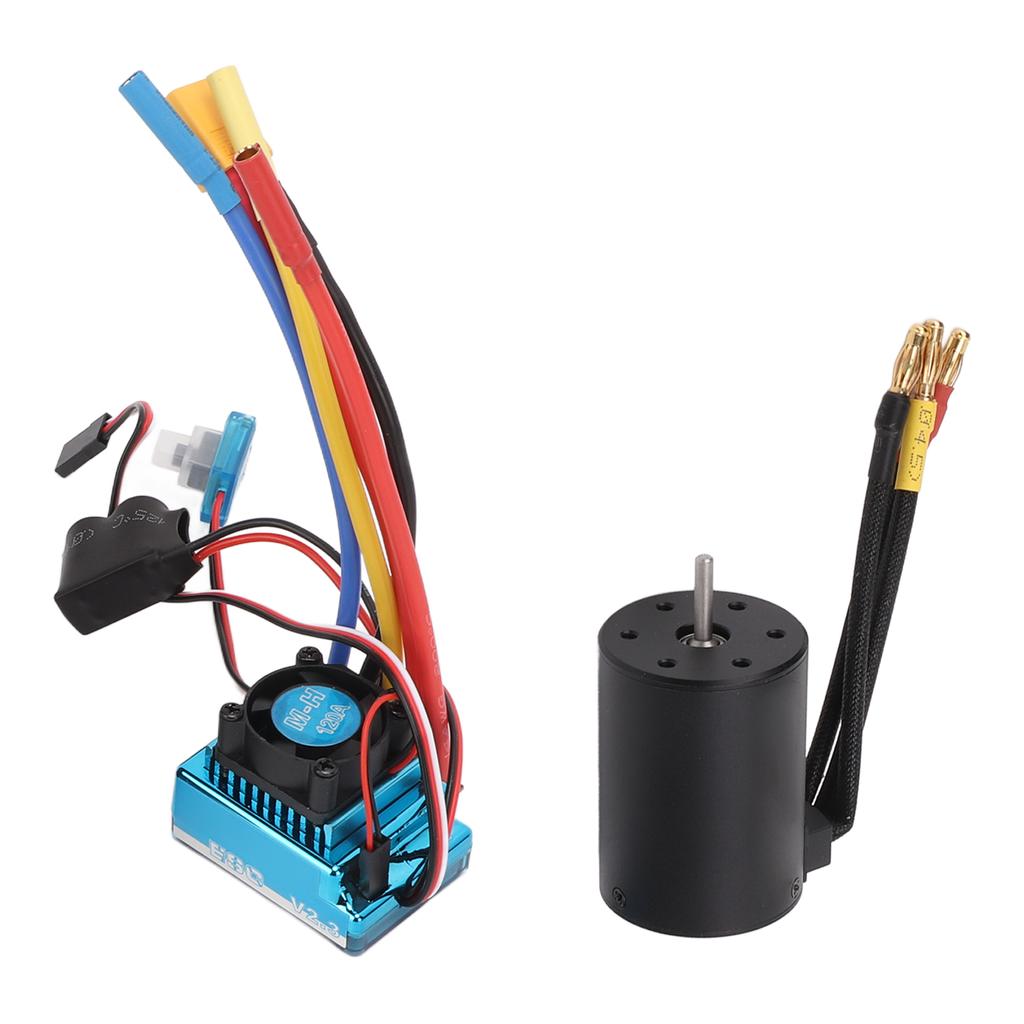

Item Type: Brushless Motor + ESC Kit
Motor Parameters:
Material: Aluminum Alloy + Copper
Color: Black
KV Value: 3100KV
Motor Size:
Diameter: Approx. 36mm/1.4in
Length: Approx. 50mm/1.9in (Excluding Shaft Length)
Shaft Length: Approx. 15mm/0.6in
Shaft Diameter: Approx. 3.175mm/0.12in
Maximum Speed: 60000
Maximum Voltage: 8.4V
Maximum Current: 100A
Connector: 4.0mm/0.16in Golden Banana Head
ESC Parameters:
Material: Plastic + Electronic Components
Color: Blue
Continuous Current: 120A
Burst Current: 600A
Product Applicable Battery (Not Included): 2-4S Lithium Battery
BEC Output: 5.8V/3A
Power Plug: XT60
Motor Plug: 4mm/0.16in Banana Plug Female
Applicable: for 1/10 1/8 RC Car
How to Use:
1. Connect the BEC wire to the receiver.2. Connect the motor wire to the ESC.3. Turn on the transmitter.4. Connect the battery pack to the ESC, then turn on the ESC. 5. When the connection of the motor and battery is completed, the motor will make a "beep" sound. 6. The motor will re beep when the throttle lever is in neutral position. 7. ESC is possible.
Package List:
1 x Motor
1 x ESC
1 x Manual
Note:
Manual measurement, please allow some errors.
