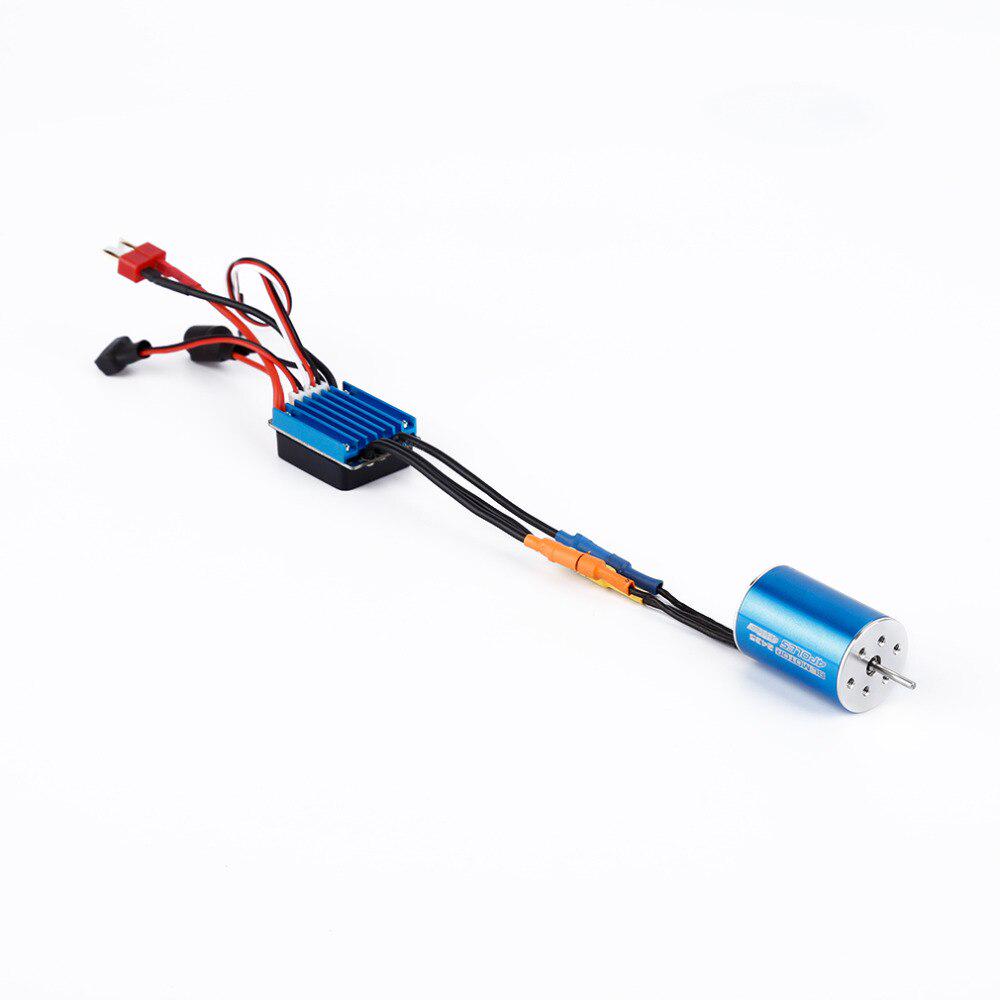

RC Car Model Parts 2435 4800KV 4P Sensorless Brushless Motor with 25A Brushless ESC

for 1/16 1/18 RC Car Off Road Truck

Motor 4 poles 12 slot Hi-torque motor design. CNC machined 6061 T6 billet alumium heatsink can. High purity copper windings maximizes efficiency. High RPM ABEC5 oversized bearings. Universal fits 1/16 brushless cars-multi-mounting system for M2.5 screws. Precision balanced rotor, smoothness for best reliability and maximum RPM. Stator - Super Thin (0.35mm) laminations. Removable/replaceable. Precision engineered for maximum energy conversion.

Electric Speed Controller Compatible with sensorless brushless motors. High anti-interference capability. Using advanced software interface to set up or update the software. Super smooth and accurate throttle linearity. Fast response to throttle input. Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.

Specifications: Motor RPM: 4800KV Max Current: 24A Max Watts: 300W Can Size: 2435 Sensored: No Shaft Diameter: 2mm Shaft Length: 12mm Bullet Connector: 3.5mm Max voltage: 7.4V(2S)-11.1V(3S)

Electric Speed Controller Cont. Current: 25A Burst Current: 90A/10sec Battery: 2 Cell Lipo / 4-6 Cell NiMh BEC: Yes BEC Output: 5V/1A Power Supply Plugs: T Male Motor Plugs: Female 3.5mm Bullet Connector

Motor Size: 46 x 24mm/ 1.8 x 0.9inch(Height x diameter) ESC Size: 37 x 26 x 15mm/1.5 x 1 x 0.6 inch Package size:80 x 65 x 50mm/3.1 x 2.6 x 2 inch Net weight: 89g Package weight: 111g

Package list: 1 * 2435 4800KV 4P Sensorless Brushless Motor 1 * 25A Brushless Electric Speed Controller 1 * manual
