Heat Shrink Tubing Rc 8.0 2:1 Red-Black Set 2 (1 + 1 )

RC Heat Shrink Tubing 8.0mm 2:1 Red and Black 2m Set

Durable 8mm 2:1 Heat Shrink Tubing for Thick Power Wires in RC and FPV

8.0mm (2:1) Heat Shrink Tubing is the ideal choice for insulating heavy gauge wires, protecting battery solders, and securing wiring in RC models and FPV drones. When heated, it shrinks to approximately 4.0mm, ensuring a strong and durable fit.

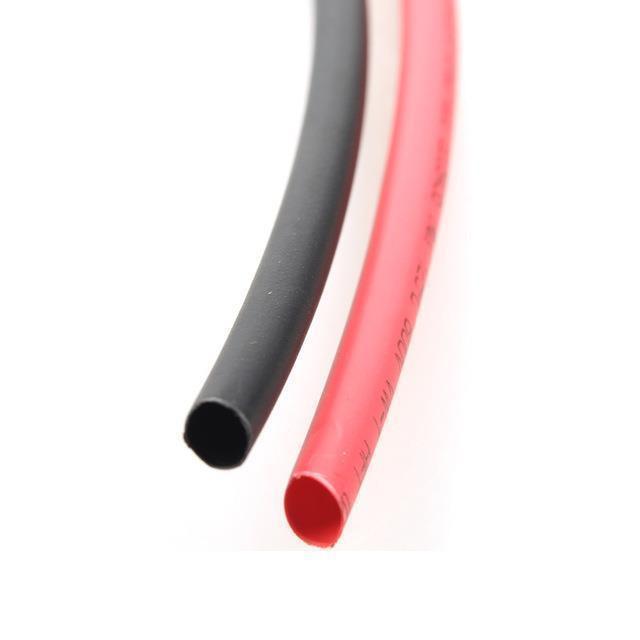

The set includes 1 m of red tubing and 1 m of black tubing, which allows for polarity marking.

Key features and benefits

• • Shrink ratio 2:1 - from 8.0 mm to approx. 4.0 mm

• • Ideal for 10-14 AWG wires

• • 1 m red + 1 m black tubing

• • Protection against oils, fuels and greases

• • Resistance to UV, moisture and high temperatures

• • Halogen-free material - safe for electronics

• • Very high mechanical resistance

• • Easy installation using a heat gun or hot air gun

• • Operating range: -55°C to +125°C

• • Aesthetic guidance of thick cables

https://www.youtube.com/watch?v=0lSdS-e29KE

• • Diameter before shrinkage: 8.0 mm

• • Diameter after shrinkage: approx. 4.0 mm

• • Shrinkage ratio: 2:1

• • Material: polyolefin heat shrink

• • Shrinkage temperature: > 90°C

• • Operating range: –55°C to +125°C

• • Flammability standard: UL94 HB

• • Insulation of 10–14 AWG wires

• • Protection of XT60, XT90, EC5 solders, etc.

• • Wrapping Thick Power Wires

• • Marking Wire Polarity

• • Tidying Up Installations in RC Cars, FPV Drones, RC Boats and Planes

Instructions for Use

• • Cut the tube to the required length

• • Slide the tube over the wire or solder

• • Heat evenly with a heat gun or hot air gun

• • Shrink to approx. 4 mm

• • Leave to cool

How to choose a tube?

8.0 mm tube is best suited for wires with a diameter of 4.5–7.0 mm, e.g.:

• • 10–14 AWG silicone wires

• • battery and ESC wires

• • wiring for large RC models

What's included in the kit

• • 1 m of 8.0 mm red tubing

• • 1 m of 8.0 mm black tubing

Salipt Heat Shrink Tubing Technical Data and Data Sheet

Frequently Asked Questions

WHAT IS THE 8 MM TUBE USED FOR?

For insulating 10-14 AWG wires, protecting solder joints and thick power cables.

IS IT SUITABLE FOR FPV DRONES?

Yes - ideal for battery cables, ESCs and high-current installations.

AT WHAT TEMPERATURE DOES IT SHRINK?

The shrinkage process begins above 90°C, and full shrinkage occurs at 110-120°C.

WHAT IS THE SHRINKAGE RATIO?

2:1 - from 8 mm to approximately 4 mm.

Can the heat shrink tubing be cut?

Yes, the tubing can be easily cut to any length. It is recommended to leave a few millimeters extra on each side for a better fit.

IS THE KIT SUITABLE FOR MARKING POLARITY?

Yes - red tubing indicates positive, black tubing indicates negative.

Color: nan Size: M
