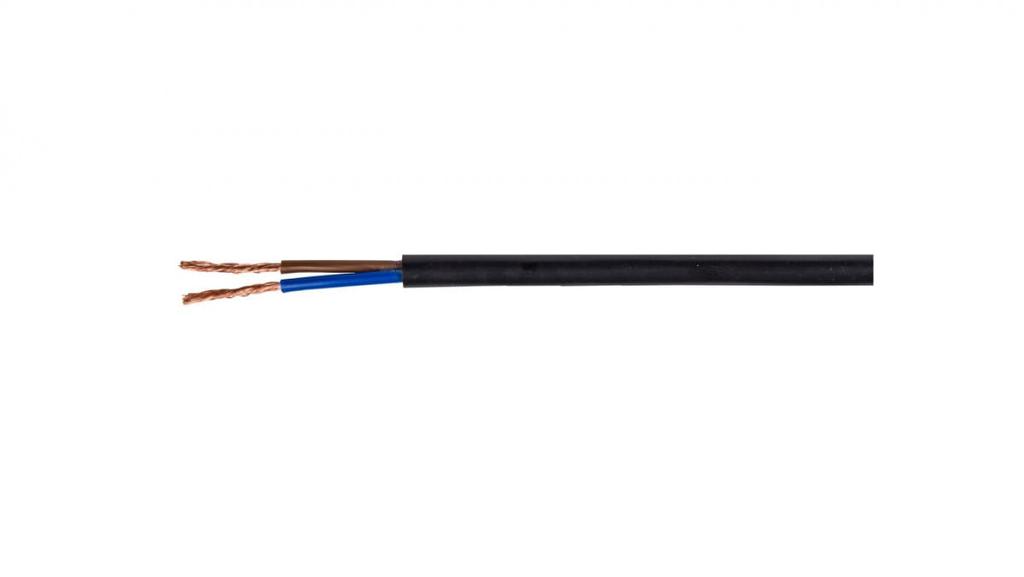

Residential Cable H03Vv-F (Ohms) 2X1.5 Black 300/300V

Halogen-free EN 50267-2-2: No

Permissible temperature of permanently installed cable [°C] up to: 70

Permissible temperature of permanently installed cable [°C] from: -40

Manufacturer's index: KAB10000362

Maximum core temperature [°C]: 70

Rated voltage U [V]: 300

Rated voltage U0 [V]: 300

Low smoke emission (according to EN 61034-2): No

Oil resistant (according to EN 60811-2-1): No

Approximate outer diameter [mm]: 6.9000

Approximate cable weight [kg/km]: 75

Nominal conductor cross-section [mm2]: 1.5000

Screen: No Core insulation: PVC Core class: Class 5 = flexible Insulation color: Black Number of cores: 2 Outer sheath material: PVC Model: Round Flame retardant: According to EN 60332-1-2 PKWiU: 27.32.13-80.03 Series: H03VV-F / OMY Protective conductor: No
