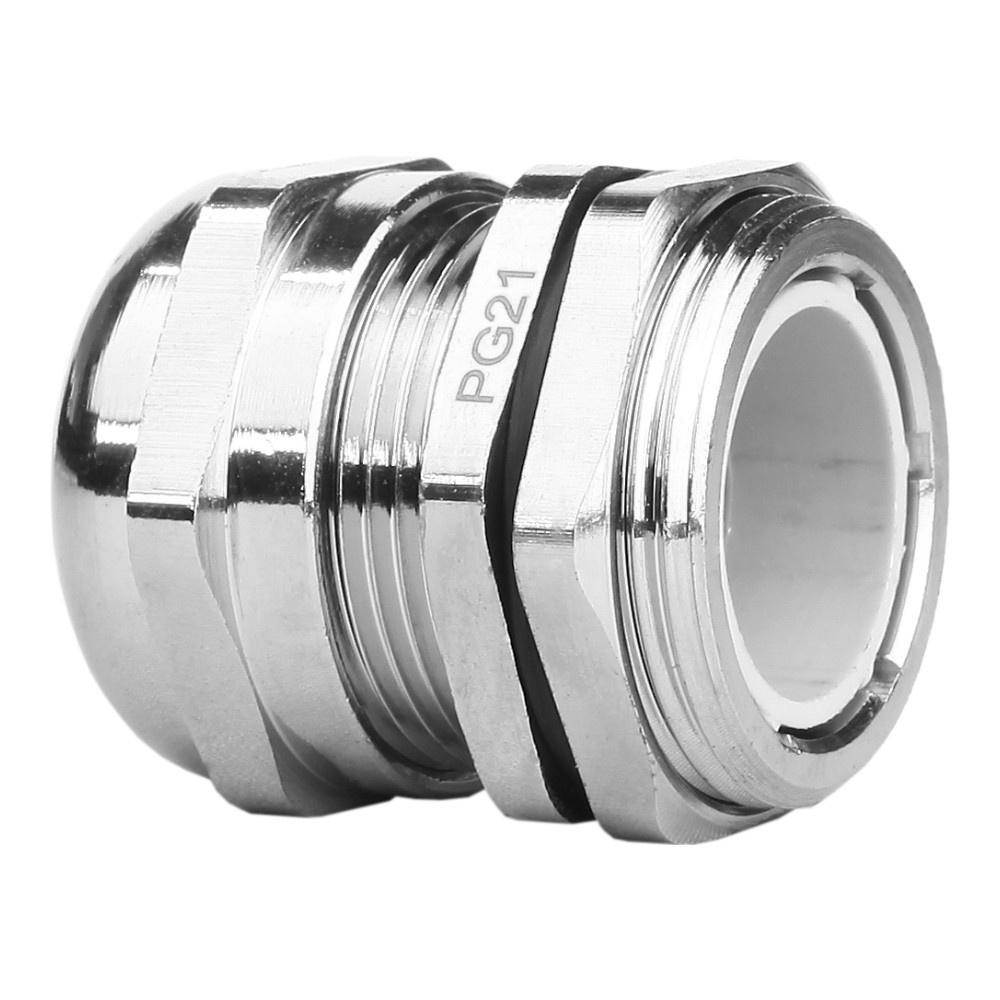

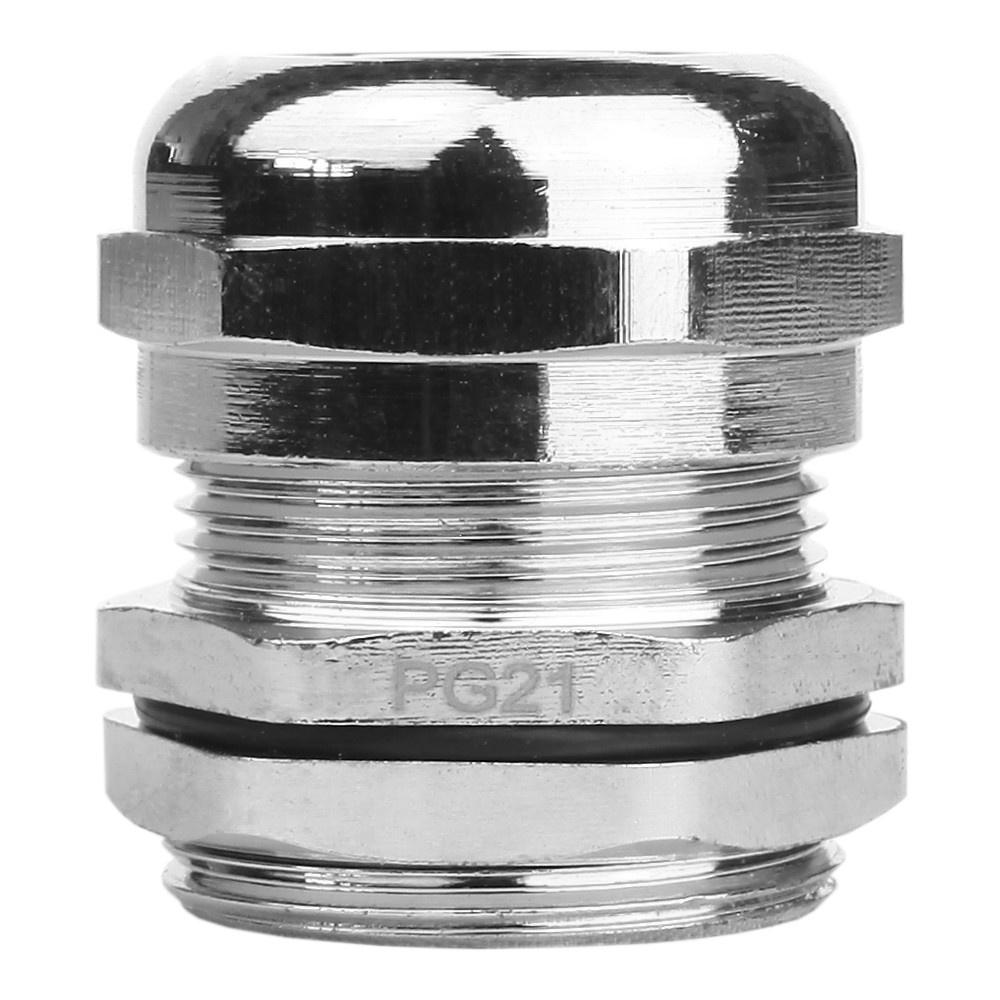

PG21 cable gland, nickel-plated brass
DEGSON is one of the leading "Hi-Tech" enterprises, with a laboratory authorized by both UL (CTDP) and VDE. DEGSON is distinguished by many years of experience, the spirit of pragmatic improvements, responsibility, and harmonious development, which translates into modern and innovative products of the highest quality, meeting all required standards.
DEGSON's laboratory is equipped with advanced testing equipment and devices, allowing us to conduct all terminal block tests in accordance with UL1059, UL486E, IEC60998, IEC61984, IEC60947, GB13140, and CSAC22 2NO 158 standards.
DEGSON has established a quality management system that complies with ISO9001, ISO14001, and ISO80079-34 standards. Our products are UL, VDE, EX, CE, EAC, and COC certified, and are RoHS and REACH compliant.
DEGSON supplies its products to companies operating in such fields as industrial automation, renewable energy sources, instruments, elevators, power plants, public transport, security, and the shipbuilding industry.
The DEGSON gland is made of the highest quality materials.The brass cable gland is perfect for difficult weather conditions and in water. Brass glands are characterized by high strength and temperature resistance - the material melts at a temperature of about 1000°C, additionally, the glands are nickel-plated - resistant to corrosion.
The gland seal made of oil-resistant NBR rubber is characterized by very high tear strength and thermal resistance up to 105°C. The gland has been authorized by CE, EAC and complies with RoHS standards.
symbol | PG21
- seals the passage of cables through the housings of electrical devices
- ensures high resistance to tearing
for cable diameter | 10-18 mm
degree of protection | IP68
temperature Working temperature | -40 to +100°C
Body material | Nickel-plated brass
Material Seals | Oil-resistant rubber NBR
Clamp material | PA material
O-ring seal material | rubber
CE, EAC, RoHS
part number | DDL-PG21M-10AH
H | 3.5 mm
SW3 | 30 mm
