【QI Charging & USB Charging】 Two input methods: vehicle 12V and USB (QC3.0). QI wireless charging and USB charging can be used simultaneously. ■Output: QI 15W/10W/7.5W/5W, USB (Type-C) 18W (5V3A/9V2A/12V1.5A) ※Charging is performed based on the power required by the device. ■12V Input: Connect to a vehicle 12V power supply to use wireless charging and USB power. ※Not for use with vehicles without a battery, 6V, or 24V battery systems. ■USB Input: Wireless charging is possible when connected to a USB QC3.0 power supply ※Type-C connector on the main unit. May not be compatible with USB-C power supplies. Mobile batteries may have their power cut off due to power consumption control. Do not use with the cap open in rainy weather. ■Waterproof: IP66 waterproof rating to withstand sudden rain. ■Power Switch: Only ON/OFF function; does not operate with USB input. Automatically turns on when receiving 12V from a 0V state. ■Wiring: 1.75m inconspicuous black double-core cable (white line on the positive side), (with fuse holder, Y-connector, and can be converted to a spade terminal).
・【Quick Hold Beetle QI & USB】 The smartphone holder that allows the fastest one-handed attachment and detachment of smartphones on Earth. Simply press the smartphone against it for instant holding, and release it by squeezing the release levers on both sides. The flat arm at the top and the two-point structure at the bottom allow even large smartphones to be easily attached and detached. The 15mm depth ensures a firm hold even with thick smartphone cases. The holder incorporates a QI charger and a USB power supply. Recommended model KDR-M14A for those who think, “It’s a hassle to attach my smartphone to the holder,” “I want Quick Hold to be used with long, thick, or large smartphones with a protruding camera,” or “I want a holder that supports both QI charging and USB power.”
・【QI Charging & USB Charging】 Two input methods: vehicle 12V and USB (QC3.0). QI wireless charging and USB charging can be used simultaneously. ■Output: QI 15W/10W/7.5W/5W, USB (Type-C) 18W (5V3A/9V2A/12V1.5A) ※Charging is performed based on the power required by the device. ■12V Input: Connect to a vehicle 12V power supply to use wireless charging and USB power. ※Not for use with vehicles without a battery, 6V, or 24V battery systems. ■USB Input: Wireless charging is possible when connected to a USB QC3.0 power supply ※Type-C connector on the main unit. May not be compatible with USB-C power supplies. Mobile batteries may have their power cut off due to power consumption control. Do not use with the cap open in rainy weather. ■Waterproof: IP66 waterproof rating to withstand sudden rain. ■Power Switch: Only ON/OFF function; does not operate with USB input. Automatically turns on when receiving 12V from a 0V state. ■Wiring: 1.75m inconspicuous black double-core cable (white line on the positive side), (with fuse holder, Y-connector, and can be converted to a spade terminal).
・■Caution: If you are unsure about voltage drop (including professionals), connect the negative terminal directly to the battery negative terminal. Body grounding is only possible if the resistance between the battery negative terminal and the grounding point is confirmed to be 0Ω. Do not connect to unstable grounding points such as the handle. Also, be careful of voltage drop due to decreased contact area of crimp terminals. ※The resistance of the ground is normal voltage when unloaded, but the voltage drops when loaded. Always measure the load voltage under the following conditions to check the power supply: (wiring is connected and the circuit is established, the smartphone holder power switch is ON, and the probe is applied to the SAE connector with a gap). ※Measuring the voltage without a load does not determine whether the power supply is good or bad.

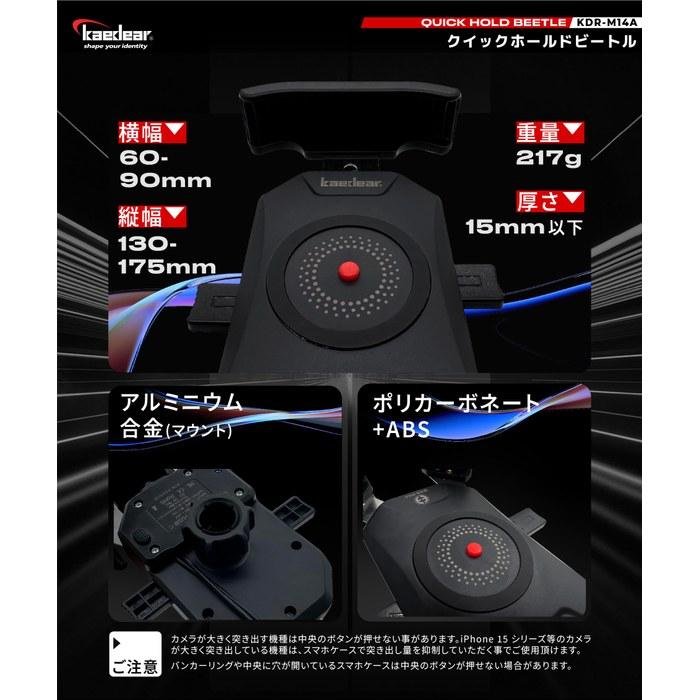

・【Compatible Models (Reference)】 iPhone 14/14 Plus/14 Pro/14 Pro Max/13 Pro Max/13 Pro/13/12 Pro/12/12 Pro Max/SE3/11/11 Pro/11 Pro Max/X/XS/XR/XS Max/Samsung Galaxy S series/Google Pixel 7/6/5/4/3, and other QI-compatible models. ※Please check the actual size including the conditions of smartphone accessories such as cases. This refers to compatibility with holding, and camera protrusion is not included in the conditions. ■Vertical width 130-175mm, horizontal width 60-90mm (Please confirm that the size of your smartphone is within this range.) ■Thickness 15mm or less (Please be careful with smartphones and cases that are thick). ■Caution: ■PopSockets or smartphone cases with holes in the center may prevent the center button from being pressed. ■The center button may not be pressed with models that have a large protruding camera. For models such as the iPhone 15 series with a large camera protrusion, use a smartphone case to reduce the protrusion.
・■The wide adjuster structure allows the width of the arm to be adjusted, accommodating vertically long smartphones. ■It can accommodate a maximum thickness of 15mm, so it can also be used with smartphones that were previously incompatible due to their thickness. ■The iPhone 11 series may not be able to display accurate GPS while wireless charging. This may be resolved with iOS updates. ■If the smartphone case contains metal or magnetic materials, it will be detected and the protection function will activate to stop charging for safety. If the smartphone case is too thick, the wireless charging distance may be insufficient and charging may not occur. ■As a precaution, we recommend using the safety band KDR-SFB-C or utilizing a strap KDR-SFB-S and carabiner, and connecting it to the handle after the holder is set to prepare for unforeseen circumstances.
【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device's requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
