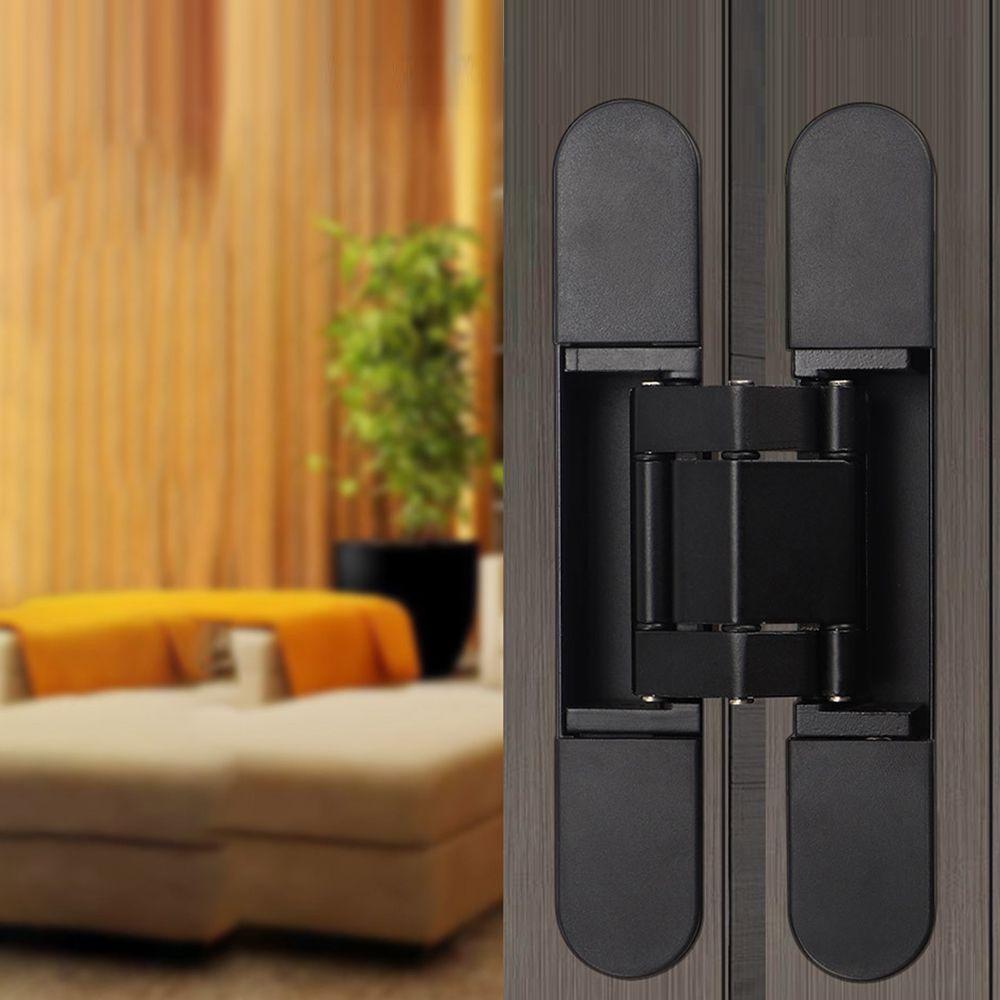

Hardware Concealed Invisible Furniture Supplies Cross Door Hinge Window Accessories Hidden Hinges

Label:Yes Color : Gold,Silver,Black 2PS Bearing strength: 40kg Name:Invisible Hinges Cross Hinge Material : Zinc Alloy Size : 150*64*22.5mm

Feature : Install in wooden doors aluminum frame doors, hidden type can be installed on folding door The main body are made of zinc alloy die-cast, connecting member made of high quality 304 stainless steel Hinge mounted in the the door leaf, opening angle of 180 degrees, after closing hinges are not exposed After closing hinges,door gap of less than 1mm, can be used for folding doors

How to install the hinge : According to the physical and reference diagram, determine the number of hinges, and draw lines in appropriate place According to the drawn line, opening the the door leaf, the hinge seat can insert into the plate hole of the door, and fixed with screws In the door corresponding position opening hole Raise the door leaf, the hinge side of the door the seat can be inserted into the hole, and fixed with screws Adjust the position of the hinge. Making the door open smoothly, the gap uniform Tighten all screws

Package included: 1Pcs Hidden Hinges
