Semi-finishedproduct : No
Battery Included : no
High-concerned chemical : none
Voltage range : Other
Origin : Mainland China
Model Number : KWS-X1 Voltage Current Meter
DIY Supplies : Electrical
Display Type : Digital Only
Semi-finishedproduct : No
Battery Included : no
High-concerned chemical : None
Voltage range : Other
Origin : Mainland China
Model Number : KWS-X1 Voltage Current Meter
DIY Supplies : Electrical
Display Type : Digital Only

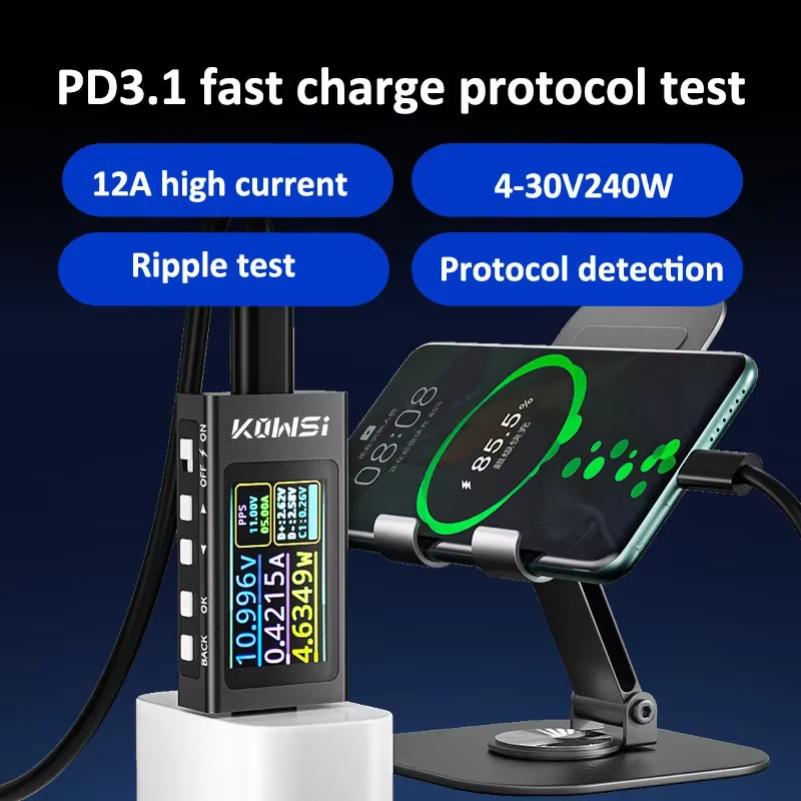

KWS-X1 4V-30V 12A Type C Tester Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement
Descriptions:
1. CNC metal case, dustproof and drop-proof, HD IPS display, real-time charging power detection.
2. 3 kinds of display page, make the function more strengthened, click the button to change the page.
3. Multi-function full protocol, curve measurement, ripple measurement, protocol test (automatic test, PD single decoy).
4. Highly reliable and safe Type-C voltage and current testing meter and fast charging trigger meter for mobile communication terminals.
5. Fully compatible with fast charging protocol and Qualcomm QC3.0/4.0 protocol, compatible with a variety of protocols fast charging, support PD/OC2.0/3.0/4.0, MTK and other protocols.
6. Support automatic protocol detection, PD2.0, 3.0, PPS, QC2.0, 3.0, FCP, SCP, AFC, PE, DASH VOOC, SuperVooc and so on.
Product parameters:
Absolute withstand voltage: 0~40V
Absolute current: 0~16A
Absolute power: 0~380W
Measuring voltage: 3.3~40V (typical: 4-30V)
Measuring current: 0~12A
Measuring power: 280W
Temperature measurement range: 0~99℃
Sampling frequency: 2~5MHz
Product size: 54.96*24.45*11.15mm
Package list:
1 * Type-C tester

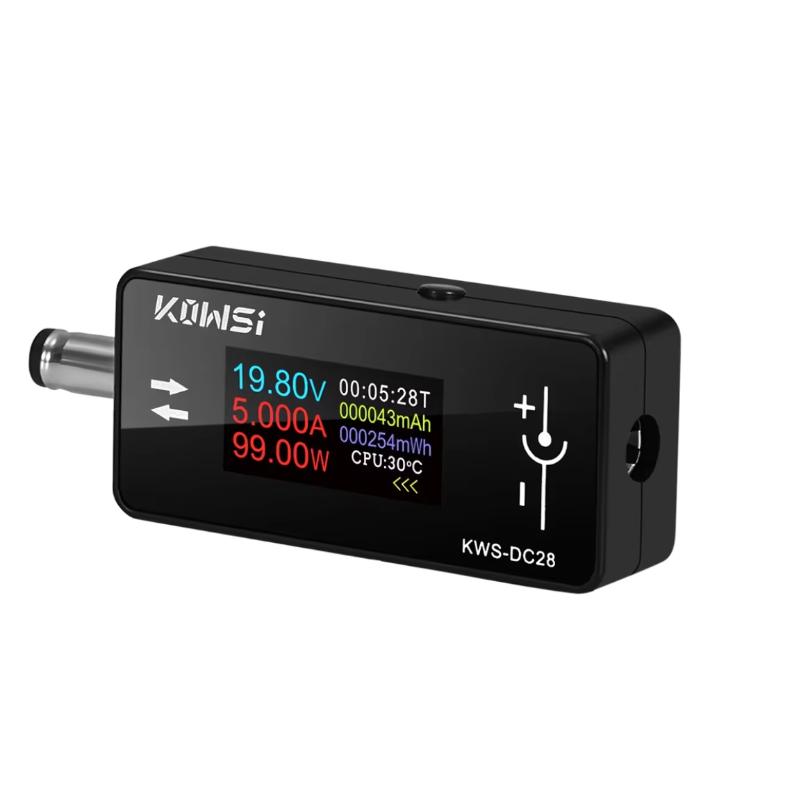

DC28
Features:
1.0.96 inch TFT HD display, all-in-one display, compatible with a variety of DC port devices, compatible and stable, timely and efficient.
2.Voltage and current detection, record energized data, for computer monitors, power tools, routers and other equipment energized detection, a variety of data on one screen display.
3. Intelligent memory current, real-time display: real-time display of power status, voltage, current, capacity and other data at a glance.
4. Click the button, change the page. Double-click button, flip page, can meet the different needs of different places.
5. Choose high-precision acquisition chip, support bidirectional current detection, can record the single highest power, maximum current, maximum voltage.
Parameter:
Voltage: DC 4~30V
Current: 0~12A
Power: 0~360W
Capacity: 0~6666666mAh
Power: 0~999999Wh
Timing: 0~99 hours
Size: 60*20*12mm
