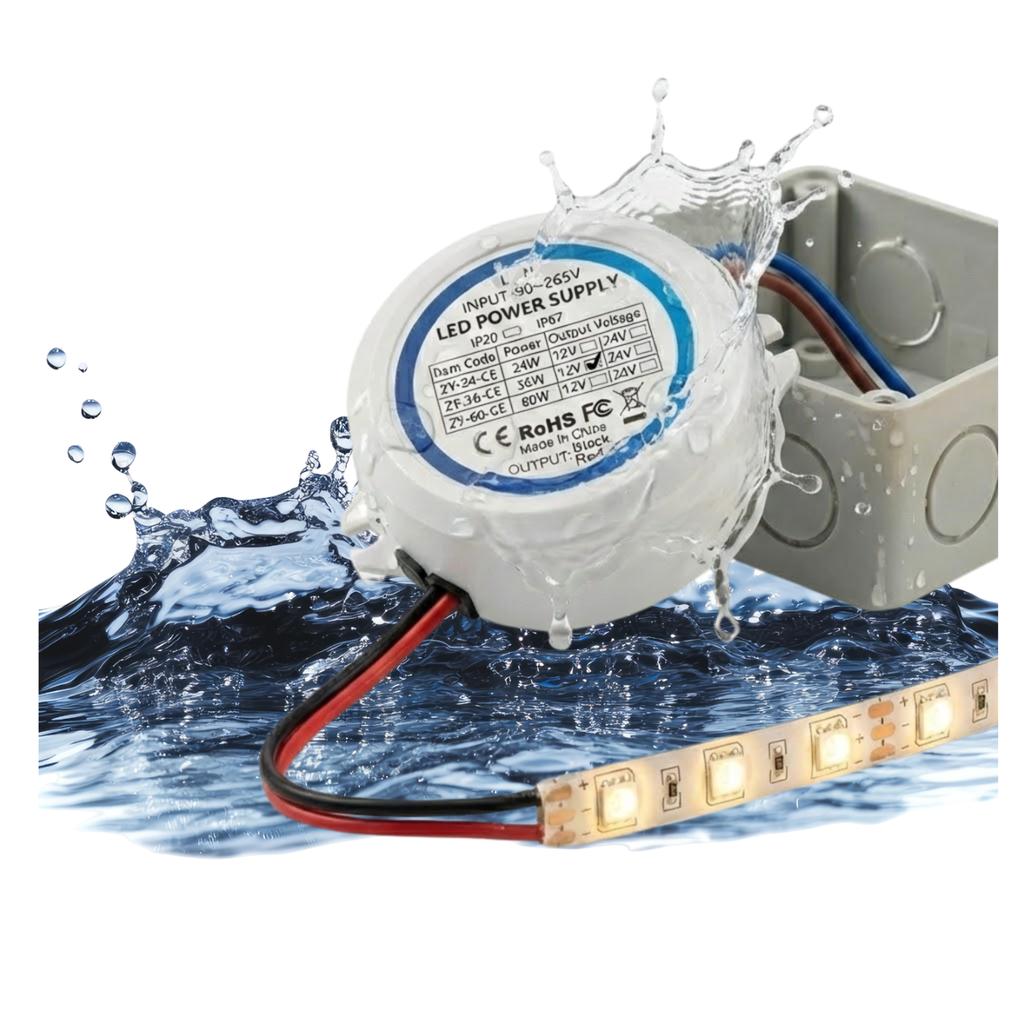

Led Power Supply 3A Ip67 Waterproof Transformer For Box

LED Power Supply 12V 24W 3A IP67 Indoor Waterproof Transformer For Box

solution to the problem of hidden power supply

Looking for a way to discreetly power LED lighting in the kitchen, bathroom or living room? Traditional power supplies are often too large and unsightly. Our ZY-24-CE model has been designed with one goal in mind: perfect fit into standard 60 mm installation boxes.

Thanks to its round shape and compact diameter (approx. 50-55 mm), the device fits into a flush-mounted box (we recommend deepened boxes), leaving room for the necessary electrical connections. No more breaking down walls or installing large service boxes!

24W (3A) power provides stable power supply for up to 6-7 meters of standard LED strip (3528) or about 2-3 meters of high-power strip.

IP67 technology - safety in all conditions

Power supply ZY-24-CE is a fully hermetic design (IP67). The interior of the housing is filled with a special thermally conductive resin. What does this mean for you?

100% Waterproof: Ideal for humid areas bathrooms (mirror backlighting), kitchens (steam), and outdoor applications (roof soffits).

Dustproof: Complete protection against dust and construction dust, which is a common cause of failure of cheap ventilated power supplies.

Better Cooling: The resin effectively dissipates heat from the components to the housing, extending the life of the device.

Technical Specifications

Model ZY-24-CE

Input Voltage 90V 265V AC (Wide Range) Resistance to voltage drops in the mains!

Output Voltage 12V DC (Stabilized Direct Current)

Rated Power 24W / 3.0A

Ingress Protection Class IP67 (Waterproof)

Dimensions Diameter: 53 mm / Height: 22 mm (Ideal for a 60 mm box)

Housing ABS plastic (Insulation), Cast resin

Application

Thanks to its miniaturization and resistance to weather conditions, the ZY-24-CE power supply will work wherever other devices fail:

LED illumination of bathroom mirrors (mounted in a box behind the mirror).

Under-cabinet lighting in the kitchen (hidden in a cabinet or box).

Stair lighting (installation in boxes at the steps).

Decorative lighting for suspended ceilings.

External roof soffits (moisture resistance).

simple installation - connection instructions

The power supply has wires approx. 10-15 cm long, ready for easy connection (e.g. using weighing cubes).

input (230V AC) - Connection to the home network:

Wire (L): Phase Wire (N): Neutral

The device is in protection class II - it does not require connecting the grounding wire (-).

? Output (12V DC) Connection to the LED strip:

Wire (): LED strip plus Wire (-): LED strip minus

Important: Remember to maintain polarity on the 12V side! Reverse connection will prevent the lighting from working.
