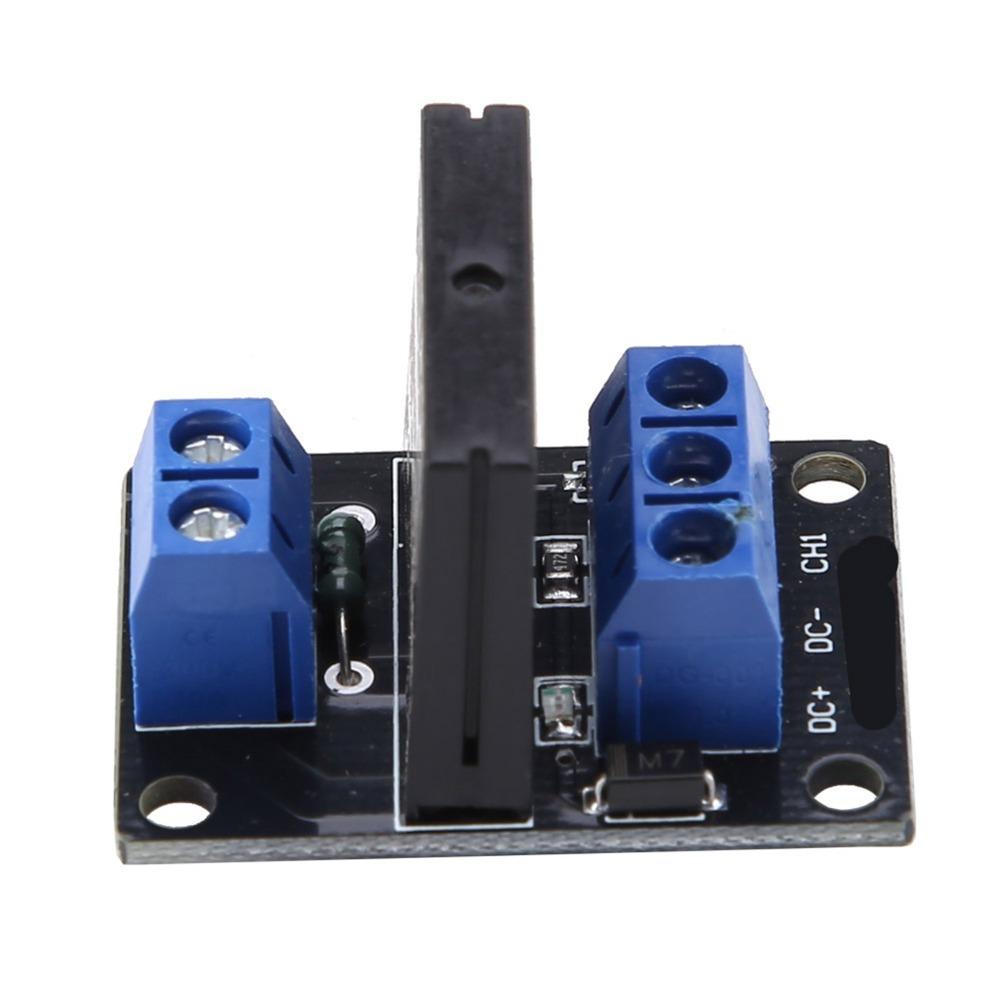

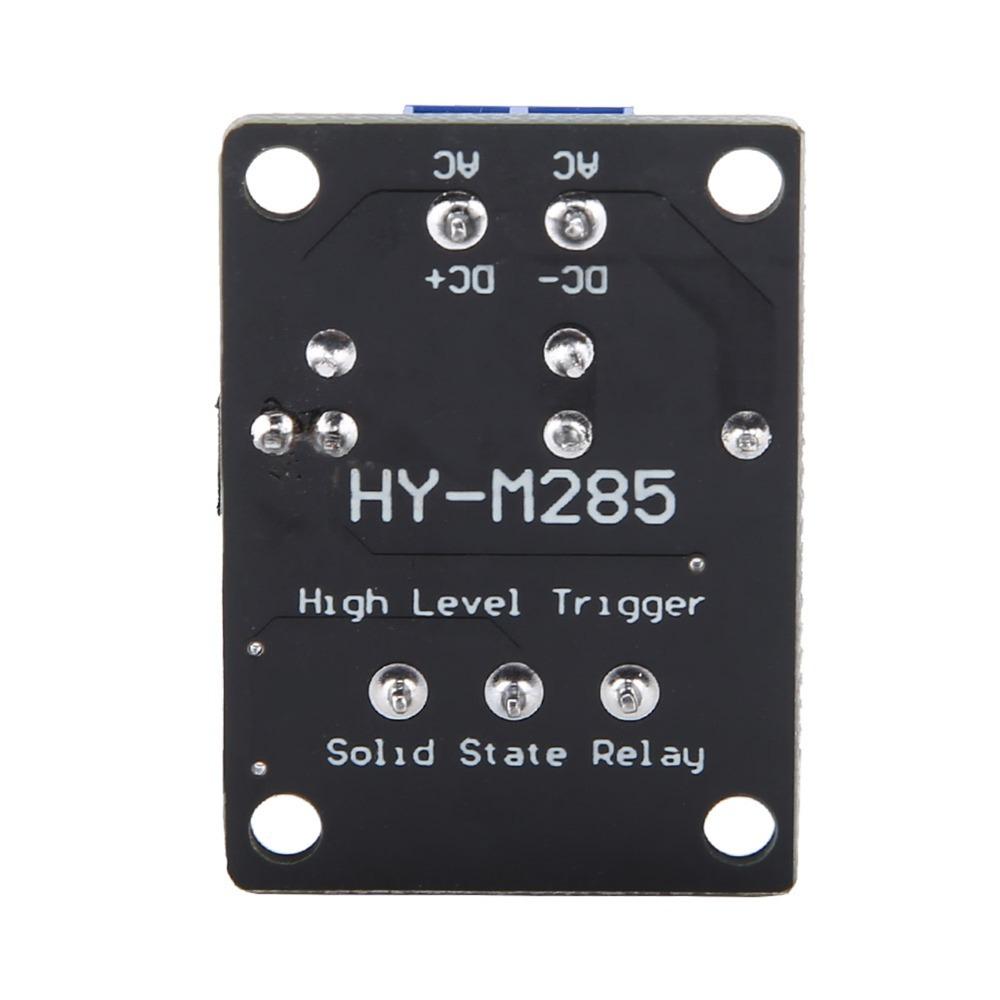

1-Channel 1 Channel Solid State Relay Module DC 5/12V 1 Channel SSR Board Power Switching

Label:Yes High sensitivity, low control power. With protective functionality to ensure the safe use of this module. Quickly switch, strong anti-interfere capability. High level signal trigger mode. Adopt premium electronic components, stable performance.

Specification: Supply voltage: DC 5V/12V (Optional) Trigger mode: High level trigger Size: 35*25*21mm(1.38*0.98*0.83in) Color: As picture shown Load voltage: 240VAC Load current: 2A Maximum working current: 13.8mA Module life: 10 million times Weight: Approx. 12g

Trigger voltage range(for 5V): DC3.3-5V: High level state, relay ON DC0-2.5V: Low level state, relay OFF Trigger voltage(for 12V): DC6-12V: High level state, relay ON DC0-5.5V: Low level state, relay OFF

Package list: 1 * Solid State Relay Module
