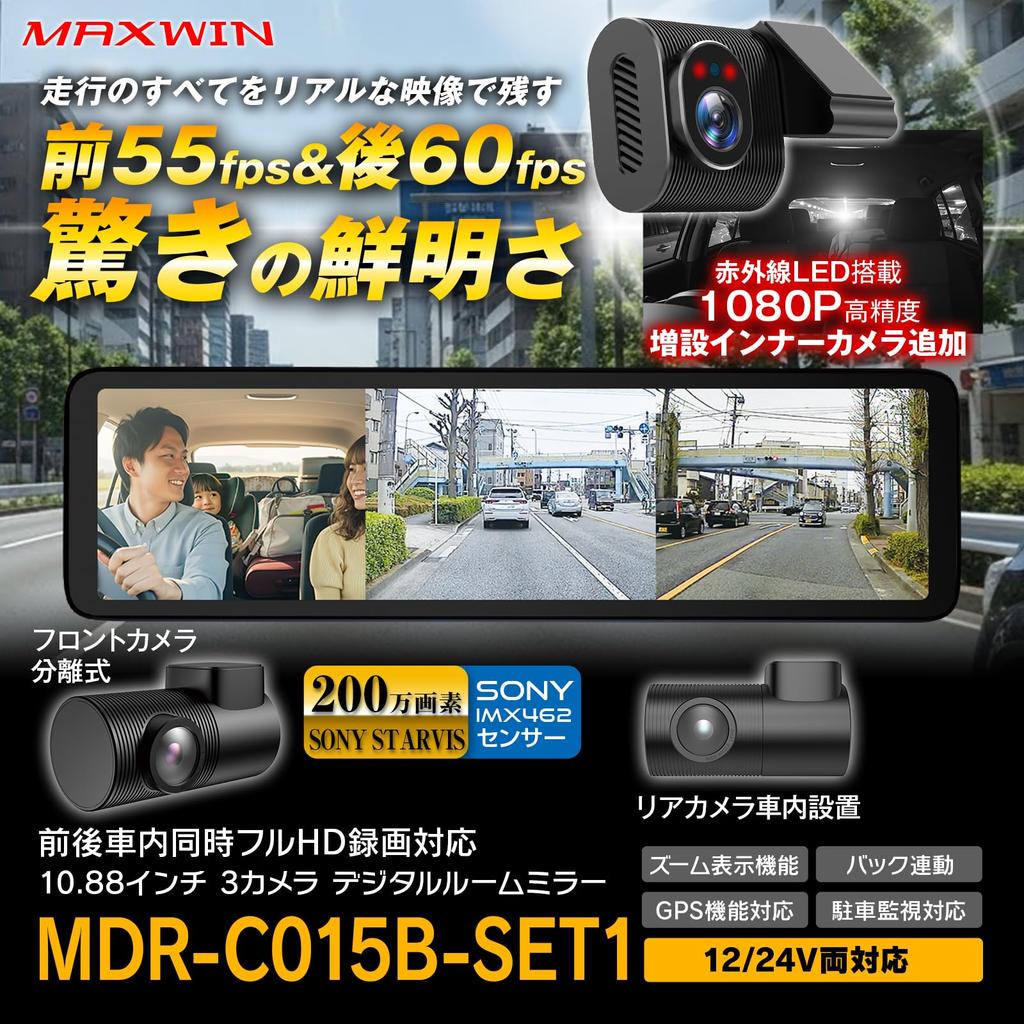

MAXWIN Mirror-Type Digital Rearview Mirror Dashcam with Front, Rear, and Interior Cameras (3 Cameras, 60fps/55fps, STARVIS IMX462, Separate Type, Zoom

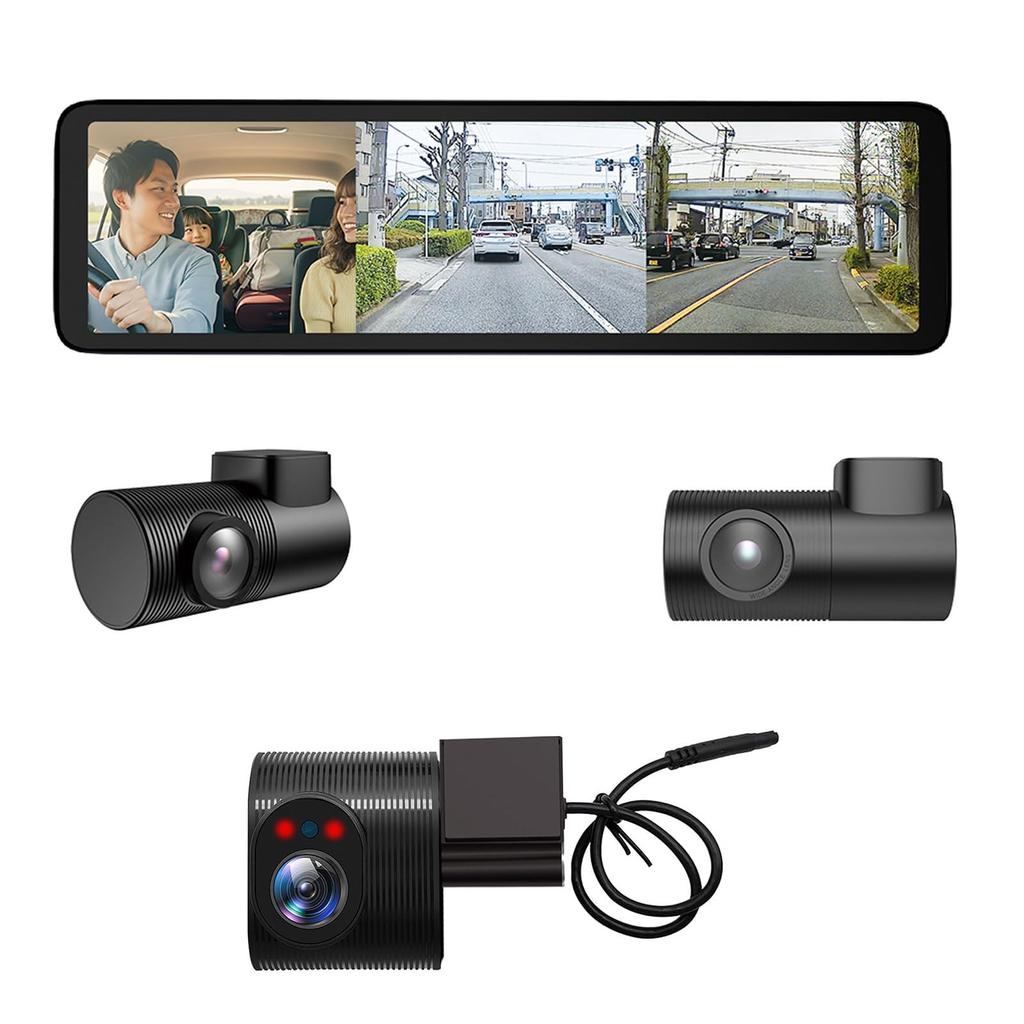

◆3-Camera Digital Rearview Mirror Includes three cameras: front, interior, and rear.

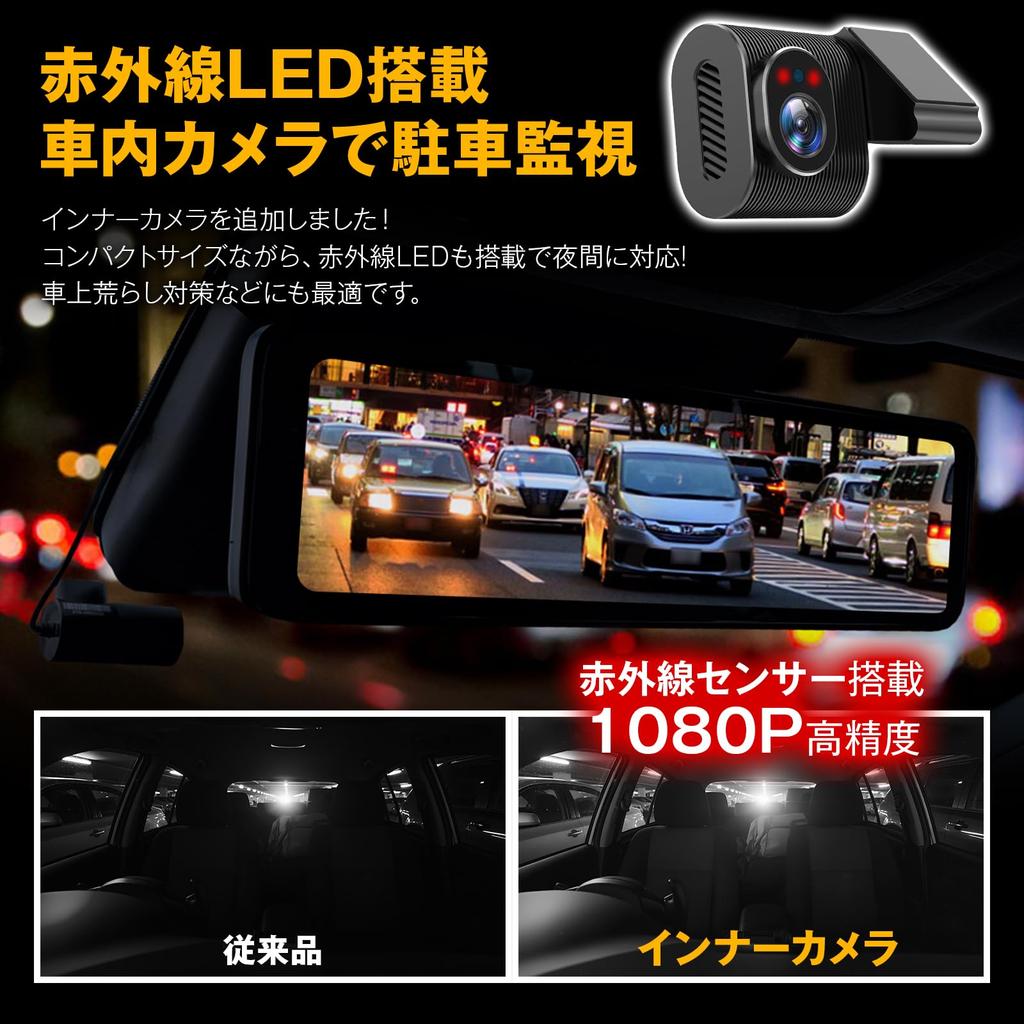

◆Parking Surveillance with Infrared LED Interior Camera An interior camera has been added! Despite its compact size, it features infrared LEDs for nighttime monitoring! With the addition of an interior camera to the front and rear, simultaneous 1080P high-definition recording is possible with three cameras. Ideal for preventing car break-ins.

◆Capture Every Moment of Driving in Realistic Footage Amazing Clarity with 55fps & 60fps Both front and rear cameras record smooth footage at a high frame rate. The rear view in digital rearview mirror mode is also more realistic.

◆Front 55fps/Rear 60fps Cameras Uses 60fps, the same as that used in genuine car manufacturers' digital rearview mirrors. Compared to conventional cameras (25-30fps), it achieves smoother and more natural motion. *The front camera uses 55fps to support LED traffic signals.

◆SONY STARVIS IMX462 Sensor STARVIS technology, specialized for night vision, provides high sensitivity and clear images even in low-light conditions. Bright and detailed images are obtained even in dark places.

◆HDR & WDR Function Even in challenging lighting conditions such as backlighting or tunnel entrances/exits, it corrects differences in brightness to ensure clear and sharp images. It provides balanced images even in scenes where bright and dark areas exist simultaneously.

◆Digital Rearview Mirror Function It allows you to see a wider area than a conventional rearview mirror, reducing blind spots caused by the vehicle body, passengers, and luggage. Furthermore, the 60fps rear camera displays smoother images on the screen at all times than conventional digital rearview mirrors.

◆Zoom Display Function The rear camera image display range can be enlarged, and the display can be switched to suit your preference.

◆Reverse Gear Linkage Compatible When the reverse gear is engaged, it switches to the rear camera image and displays guidelines. It assists with parking. The guidelines can also be adjusted up, down, left, and right. The angle when reversing can also be adjusted up and down.

◆Single-Wire Connection to Main Unit All connection cables are bundled together into a single cable that connects to the main unit mirror. A USB Type-C connector provides a clean and streamlined connection.

◆Two Rear Camera Models Available: Exterior and Interior The exterior rear camera attaches to the top of the license plate or the inside of the upper part of the rear window using double-sided tape. The interior rear camera attaches to the inside of the upper part of the rear window using double-sided tape.

◆Separate Front Camera The front camera is a separate type, allowing for installation in your preferred location. Unlike integrated cameras, the mirror's orientation is not affected by the camera's direction, allowing for easy adjustment of the mirror itself to a comfortable viewing angle, which is convenient when multiple people are driving.

◆12V/24V Compatible Compatible with 12V vehicles such as passenger cars and kei cars, as well as 24V vehicles such as trucks. With the optional rear camera extension cable, it can be installed on various vehicles such as trucks, campervans, and food trucks.

◆Nationwide LED Traffic Light Compatible The front camera's frame rate is set to be compatible with LED traffic lights in both Eastern and Western Japan.

◆Supercapacitor Equipped Even if the power cable is disconnected due to an accident, it minimizes file corruption and more reliably saves the last recorded video.

◆Saves in TS File Format Even if recording is forcibly terminated, the risk of file corruption is reduced, and the video up to the immediate lapse is saved.

◆Digital TV Noise Reduction Measured Noise reduction design minimizes interference with digital TV reception and GPS reception of navigation systems. (Our standards)

◆GPS Function *Optional Supports speed display while driving with a separately sold GPS antenna connection. Map synchronization is also supported via playback software.

◆Parking Surveillance Function *Optional Parking surveillance function can be used with a separately sold 3-core power cable connection. Supports time-lapse/impact detection recording. Parking surveillance time can be set in detail, such as 1, 3, or 6 hours.

●Detailed Specifications Monitor: 10.88-inch IPS LCD Recording Resolution: Front: 1080P/720P, Rear: 1080P Recording File Structure: 1 minute/2 minutes/3 minutes Video File Format: TS (H.264) Recorded Video Playback Method: H.264 playback software or dedicated viewer software Still Image File Format: JPG Memory Card: microSD card (sold separately) (up to 128GB, Class 10 required) Power Supply Voltage: DC 12V / 24V Operating Voltage: 5V 3A Operating Temperature Range: -20℃ to +70℃ Warranty Period: 1-Year Warranty Product Model Number: MDR-C015B-SET1

●Package Contents Mirror-type Dashcam Unit x 1 Cigarette Lighter Power Cable (3.5m) x 1 Front Camera x 1 Rear Camera x 1 Rear Camera Extension Cable (6m) x 1 Mounting Rubber x 2 Instruction Manual x 1 Interior Camera x 1 Y-Split Cable x 1

*Product photos are for illustrative purposes only. Actual product may differ. Please be aware of this beforehand.

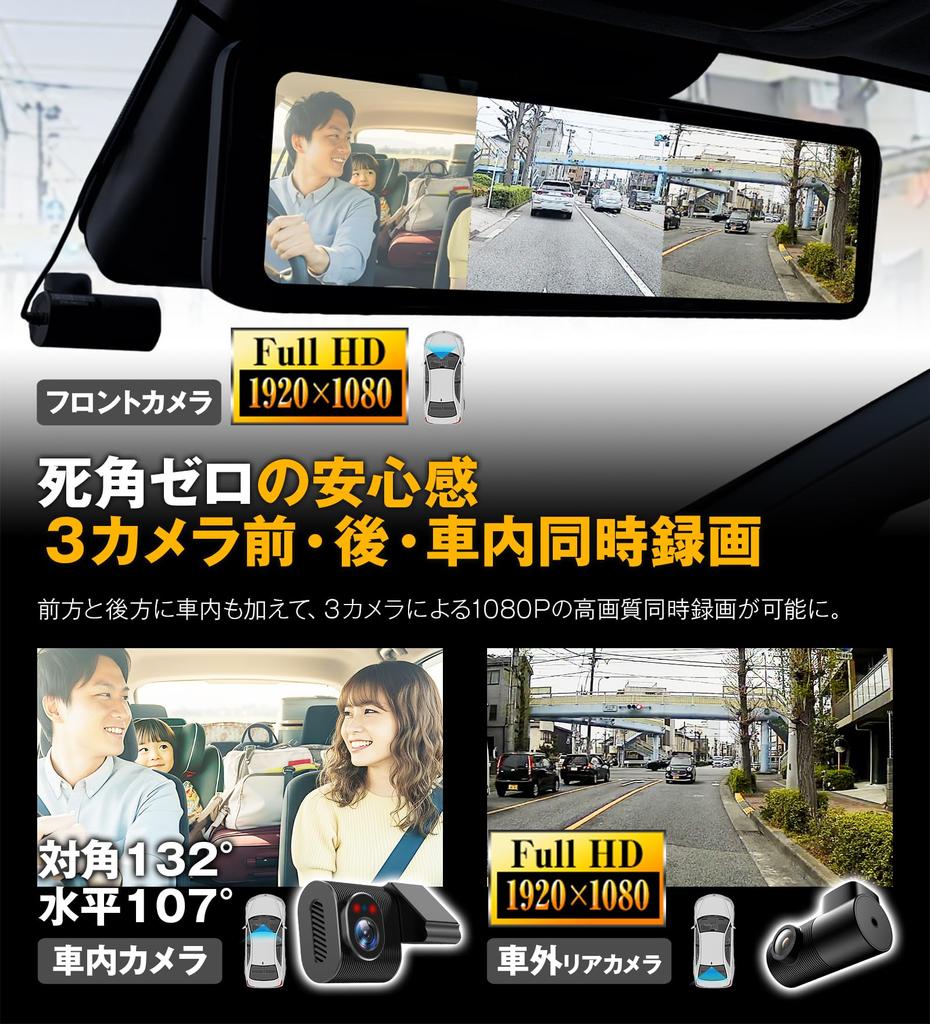

【3-Camera Simultaneous Recording - Complete Coverage of Front, Rear, and Interior】 Simultaneous recording with 3 cameras: front, rear, and interior. Achieves all-around recording for business use such as taxis, delivery services, and company vehicles. The interior camera with infrared LEDs allows for clear recording of the rear seats at night. High-definition 1080P simultaneous recording is possible with 3 cameras. Ideal for preventing car break-ins. A professional-grade dashcam suitable for both individuals and corporations.

[Rear 60fps / Front 55fps - Industry-Leading Frame Rate] The rear camera supports industry-leading 60fps recording, while the front camera supports 55fps recording. Completely eliminates the "unlit" phenomenon of LED traffic lights (the problem where signals appear to disappear in recorded footage). Records evidence of aggressive driving and accidents with smooth video. You'll be amazed by the smoothness of the video when switching from conventional 30fps models.

[Equipped with Sony STARVIS IMX462 - Outstanding Performance in Low Light and Nighttime Shooting] Equipped with Sony's high-sensitivity sensor "STARVIS IMX462," it records clear images even in harsh shooting environments such as nighttime, tunnels, and backlighting. It boasts high license plate recognition accuracy, making it extremely reliable as evidence for nighttime collisions and hit-and-run incidents. HDR and WDR support correct overexposure and underexposure.

[Separate Front Camera Design + Zoom Function - Safe Installation Even in Sensor-Equipped Vehicles] The front camera is separated from the main unit, allowing for interference-free installation even in the latest vehicles equipped with ADAS and collision mitigation sensors. The angle can be freely adjusted, ensuring unobstructed visibility. The zoom function corrects the "distance perception discrepancy" often felt with digital rearview mirrors, allowing for rearward visibility similar to a conventional physical mirror.

[Supercapacitor Equipped + 12V/24V Compatible - Reliability First Design] Equipped with a supercapacitor that does not use lithium batteries, it reliably protects recording files even in the event of sudden power outages or engine stoppages. The TS file format minimizes the risk of file corruption. Compatible with both 12V and 24V systems, it is suitable for trucks, buses, and commercial vehicles. USB Type-C connection ensures clean wiring.
