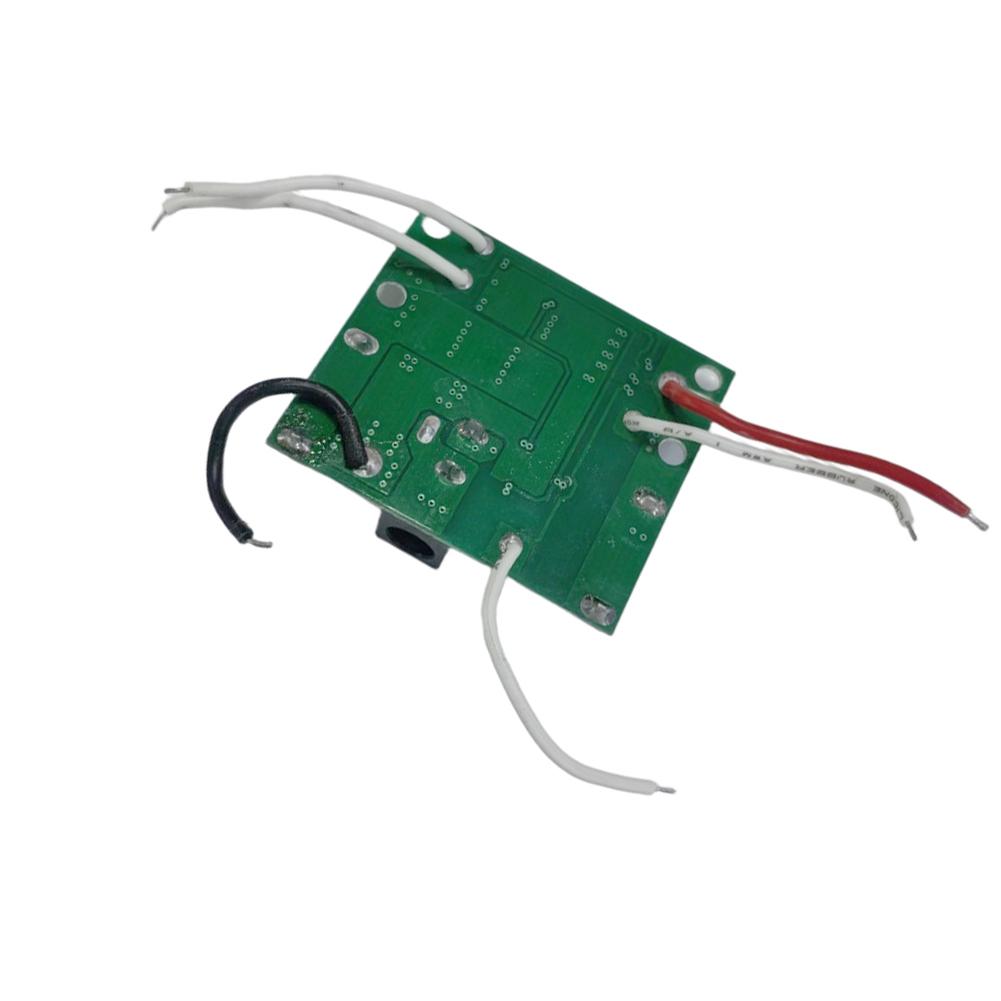

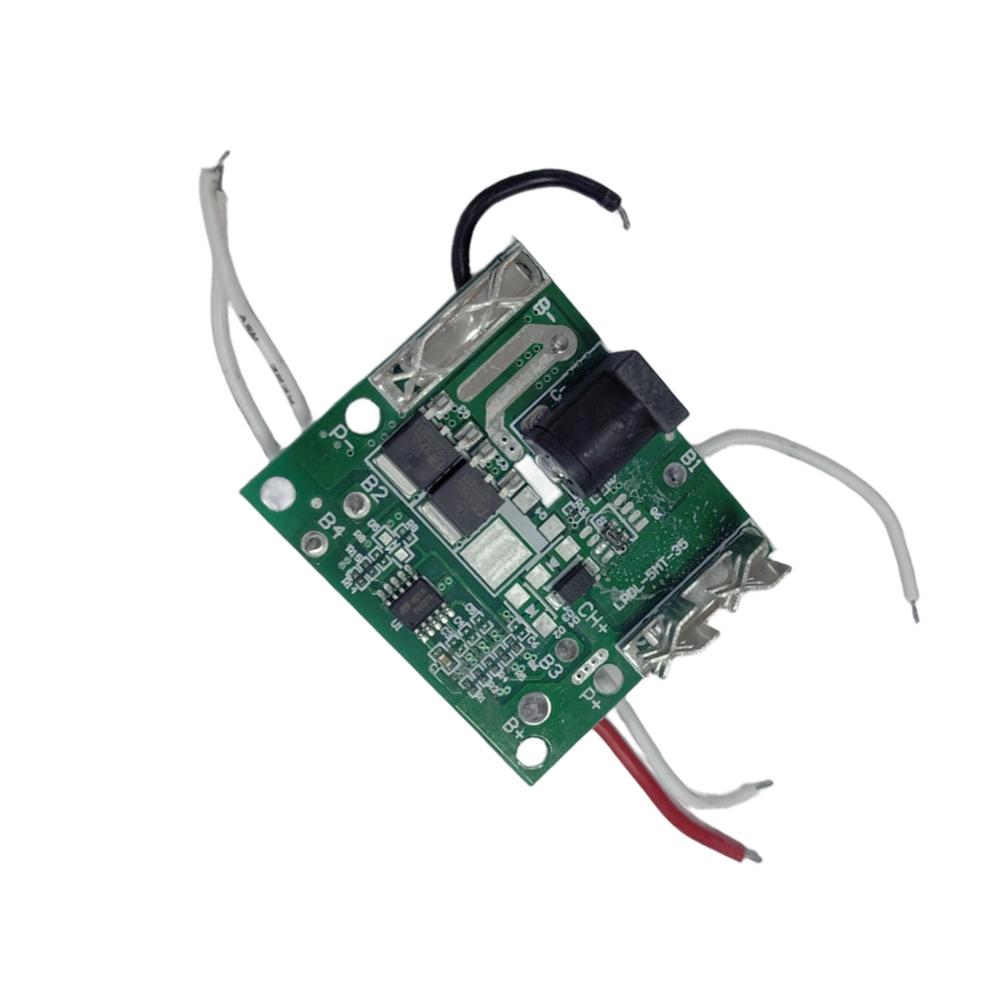

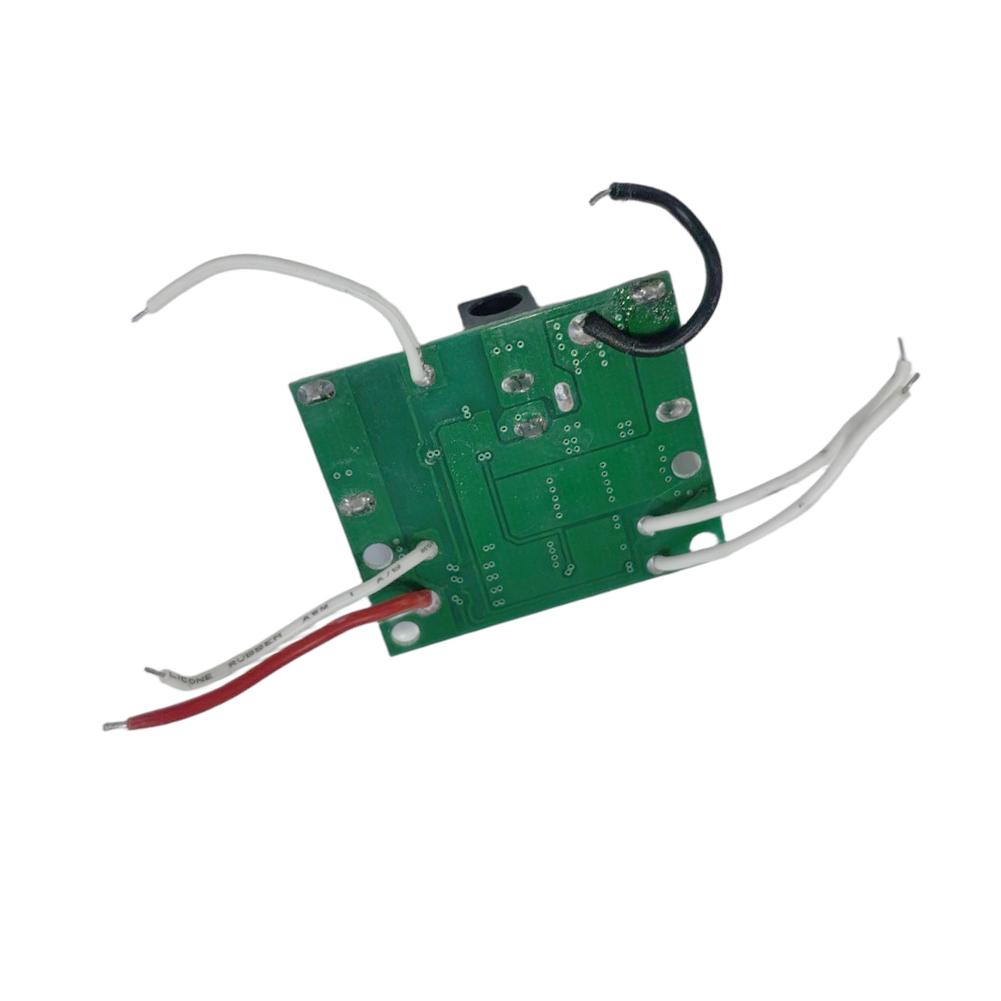

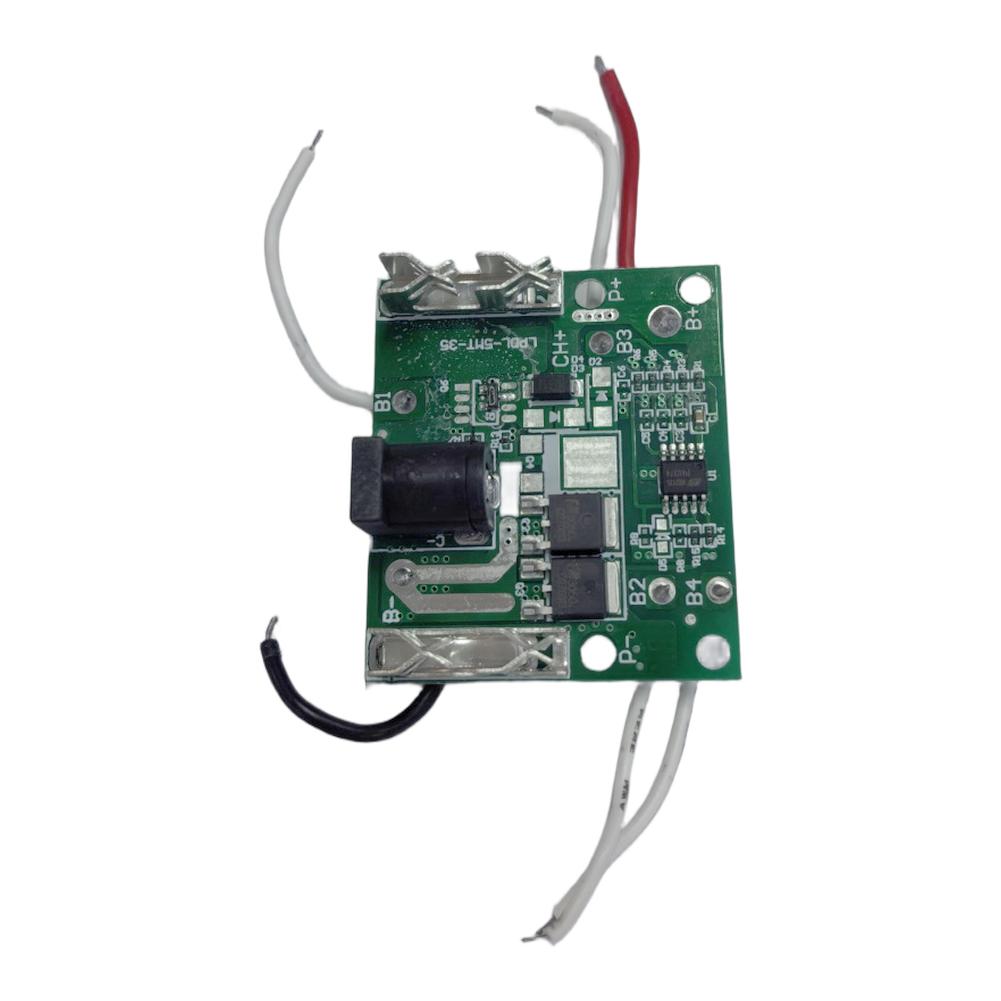

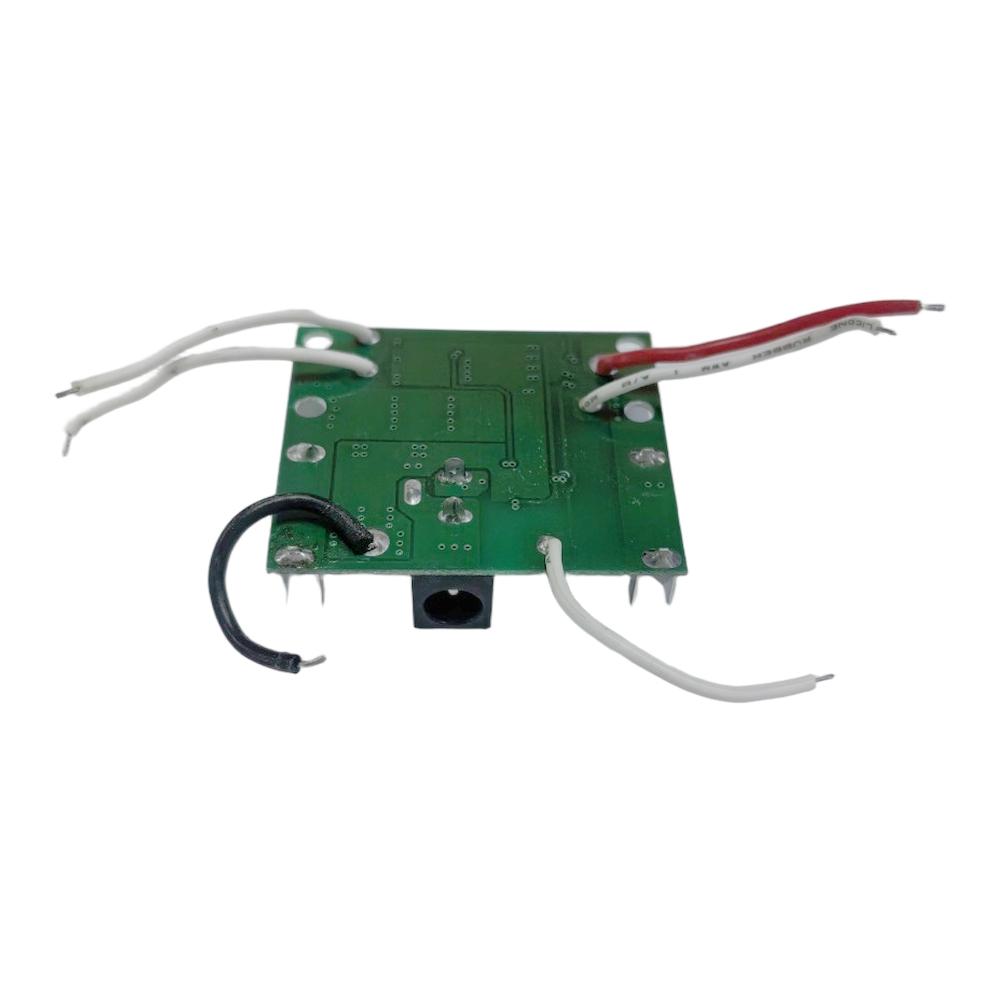

Protection Board Circuit Board Electric Power Tools Accessories

Features: The for Protection board is for 5 series Li- for ion batteries, mainly used for electric power tools. It uses special IC for 5S / batteries as processor to detect real-time voltage, charge and discharge for current and ambient temperature of each /. Stable various protective functions for charging and discharging, such as overcharge for Protection, over-discharge for Protection and short circuit for Protection. Low power consumption,the working for current is about 25uA and quiescent for current is about 6uA. Choosing the correct for Protection board and applying it appropriately is for vital to the longevity your batteries.

Specifications: Charge Voltage:19/21V Single Cell Charge Voltage:3.8/4.25V Continuous Discharge for current:8-20A Overcharge Single Cell Detection Voltage:3.85-4.25V Overcharge for Protection Delay:1S Overcharge Single Cell Recovery Voltage:3.75-4.13V Overcharge for Protection Release Delay:1mS Over-discharge Single Cell Detection Voltage:2-2.8V Over-discharge for Protection Delay:1S Over-discharge Single Cell Recovery Voltage:2.5-3.0V Over-discharge for Protection Release Delay:100±20mS Over- for current Detection Voltage:0.-0.4V Over- for current Detection for current:30±5A Over- for current Detection Delay:1S Short Circuit for Protection Support:Yes Short Circuit Detection Delay:250uS Short Circuit Release Delay:1S Short Circuit Detection Voltage:0.8V Recovery State:Auto after Disconnect Load Over Temperature ProtectionProtection Temperature:70±5° Recovery Temperature:55±5° Working State:25uA (25°) Stand-by State:6uA(25°) Discharge Main Circuit Internal Resistance:30±5mΩ Operating Temperature: -40°-85° RH≤75% Store Temperature: -40°-125° RH≤75% SizeLength x Width:45x40mm/.77*.57"

Package Included: * / Charger for Protection Board

Note: . The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
