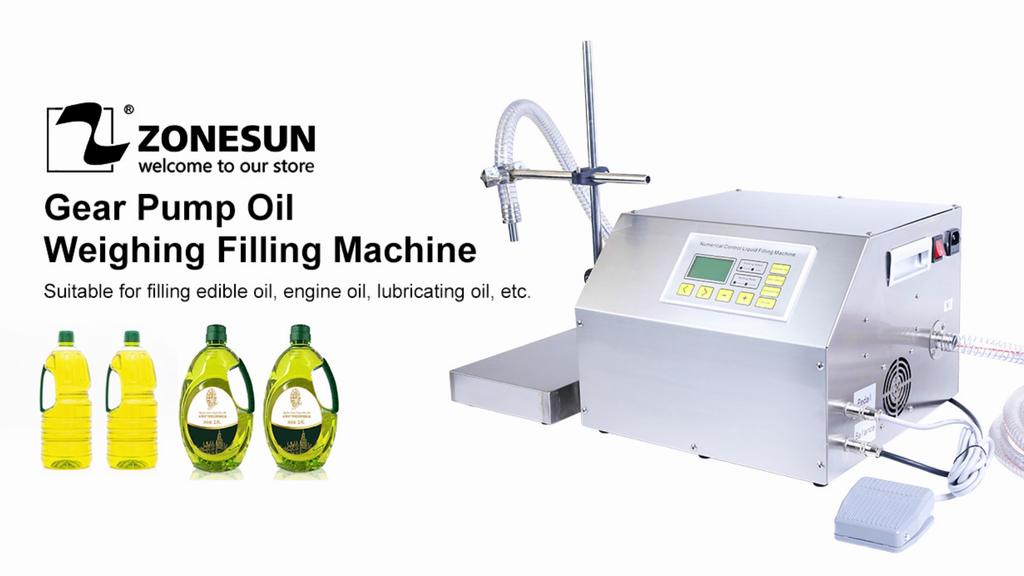

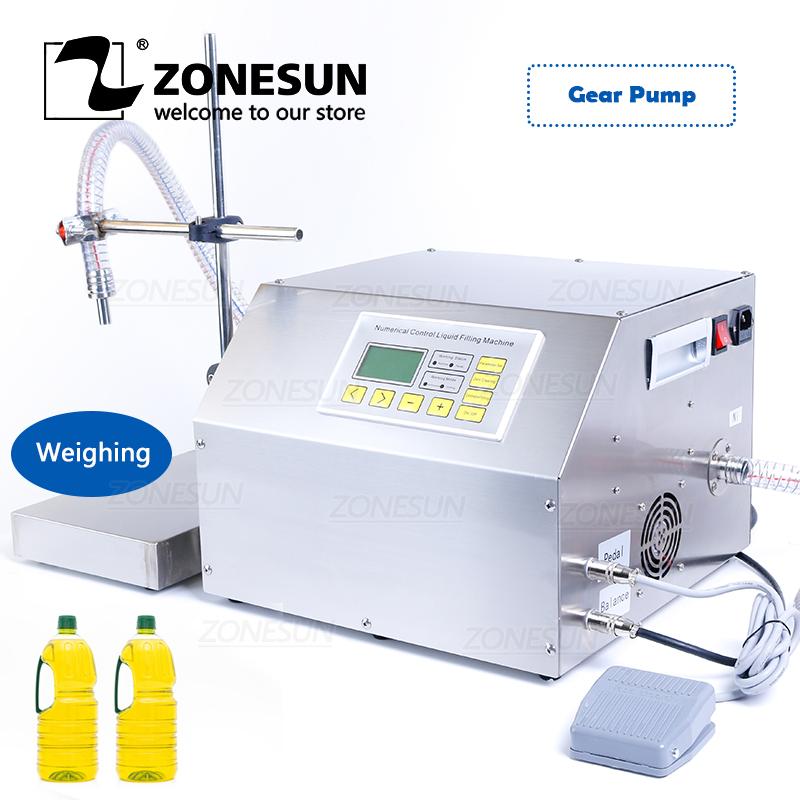

ZONESUN ZS-GP261W Semi-automatic Filling Machine Edible Oil Hydraulic Engine Oil Weighing Gear Pump Plastic Bottle Vial Filler

Parameter

Machine Model: ZS-GP261W

Machine Power: 220V/110V  550W

Machine Pump: Gear Pump

Max Flow Rate: 18L/min

Filling Range: 150mL-18L

Weighing Range: 150g-100kg

Repetitive Error: ≤±10g

Filling Nozzle Diameter: Φ12mm&Φ19mm

Hose Diameter: 19mm(ID)/25mm(OD)

Hose Length: 3m(inlet)/1m(outlet)

Max Suction Distance: 4m

Suitable Liquid Temperature: ＜90℃

Memory Function without Electricity: Available

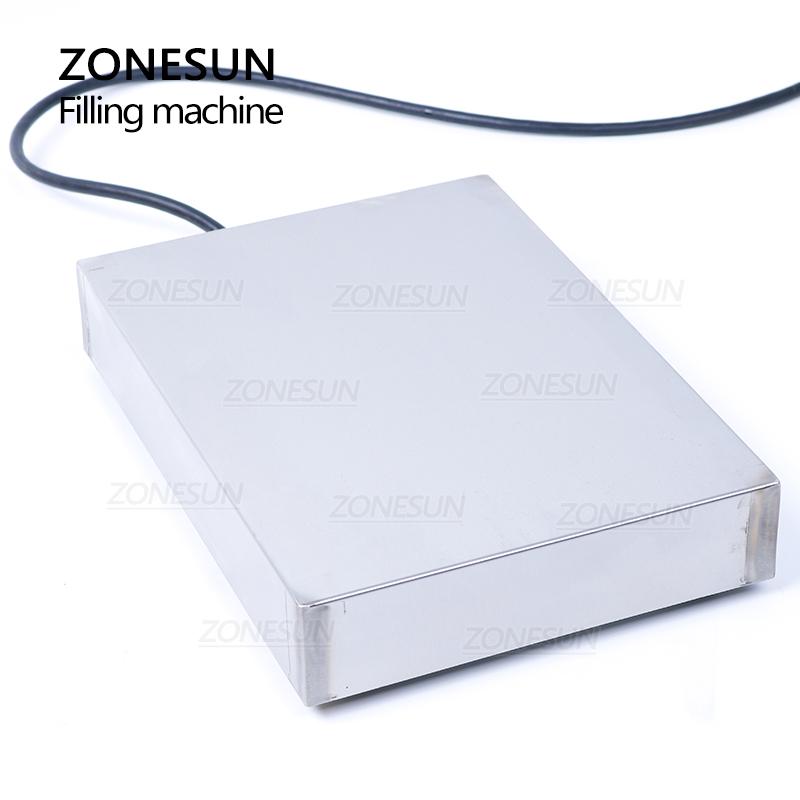

Weighing Device Size: 250mm*180mm*42mm

Machine Weight: 14.5kg

Machine Size: 350mm*343mm*250mm(L*W*H)

Package Weight: 16kg

Package Size: 500mm*410mm*320mm (machine), 400mm*370mm*200mm(weighing device)

Description

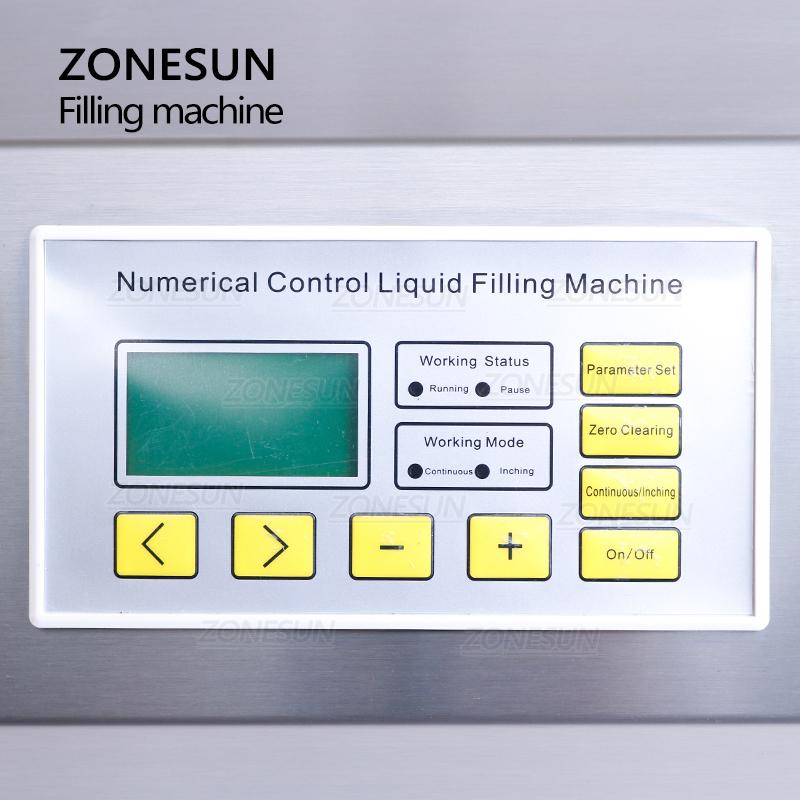

This gear pump filling machine is suitable for oil, like edible oil, engine oil, hydraulic oil, etc. With weighing funtion, it can fill oil accurately. Operator just needs to set filling weight on the panel, which is easy to operate. It can fill 18L/min, improving work efficiency. The machine can be widely used in catering, cosmetic, chemical industries.
