1. Product introduction
HLK-LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave, to detect human targets in the set space, combined with radar signal processing, accurate human body induction algorithm, to achieve high sensitive human presence status sensing, which can identify the human body in motion and stationary state, and can calculate auxiliary information such as the distance to the target.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. Farthest sensing distance up to 6 meters, distance resolution 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range and sensing in different intervals sensitivity and unmanned delay time, etc., to adapt to different specific application needs.
Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
2. Product Features
Plug and play, easy assembly
The longest sensing distance is up to 5 meters
Large detection angle, coverage up to ±60 degrees
Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
Multi-level intelligent parameter adjustment to meet the needs of scene changes
Visual debugging and configuration tools
Small and simplified, the minimum size is only 7mmx35mm

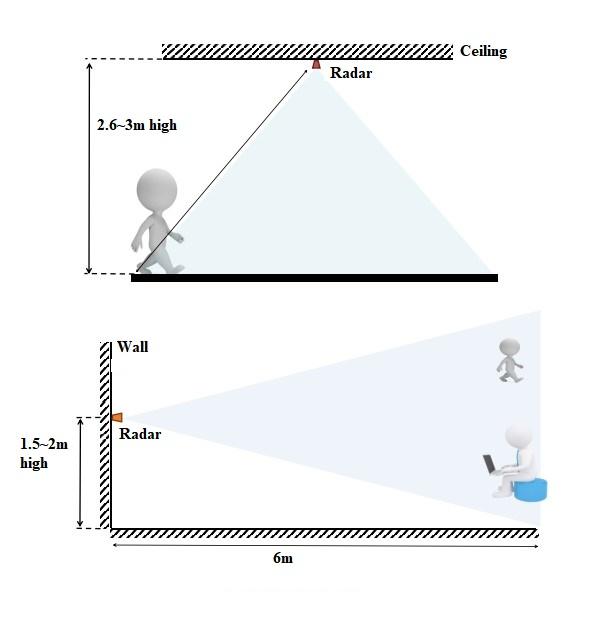

Supports various installation methods such as ceiling hanging and wall hanging
24GHz ISM band, compliant with FCC and CE spectrum regulations
5～12V wide voltage power supply
The ultimate cost-effective choice
3. Benefits
LD2410 human body sensing module adopts 24GHz millimeter wave radar sensor technology. Compared with other solutions, it has obvious advantages in human body sensing applications:
1. In addition to being sensitive to moving human bodies, it can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions;
2. It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;

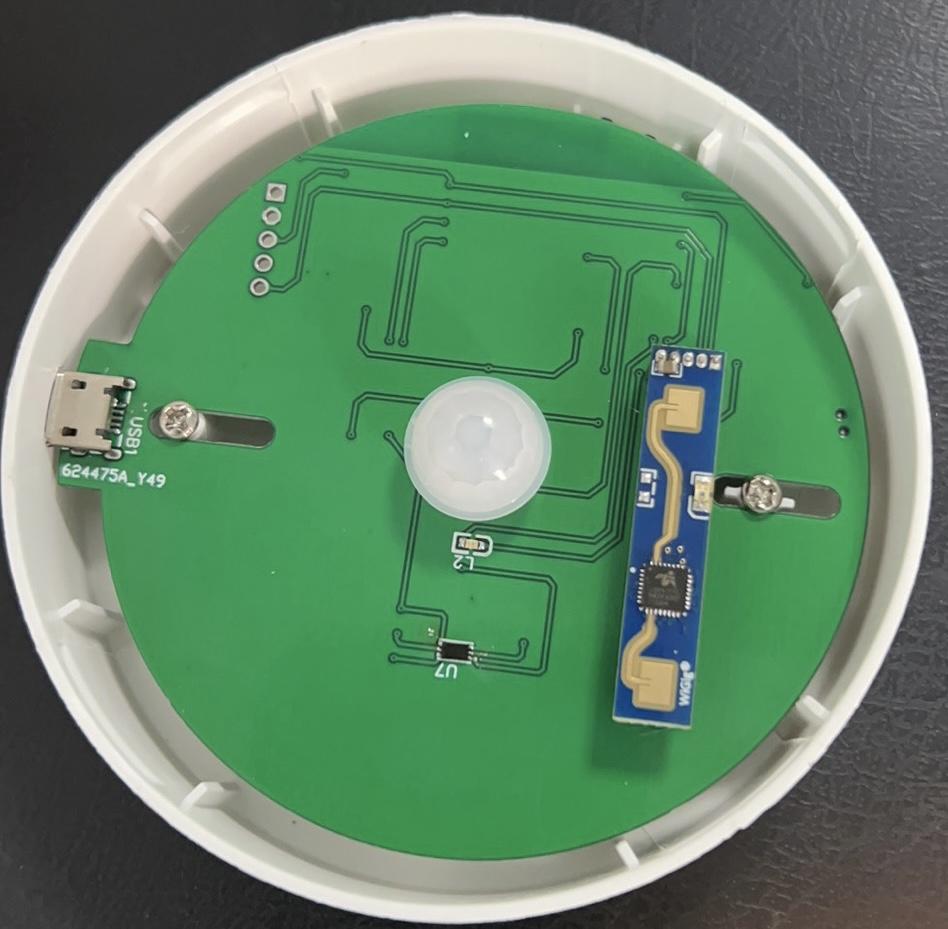

3. It has good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product;
4. It can flexibly configure the farthest sensing distance and the sensitivity on each distance door to achieve flexible and fine personalized configuration.

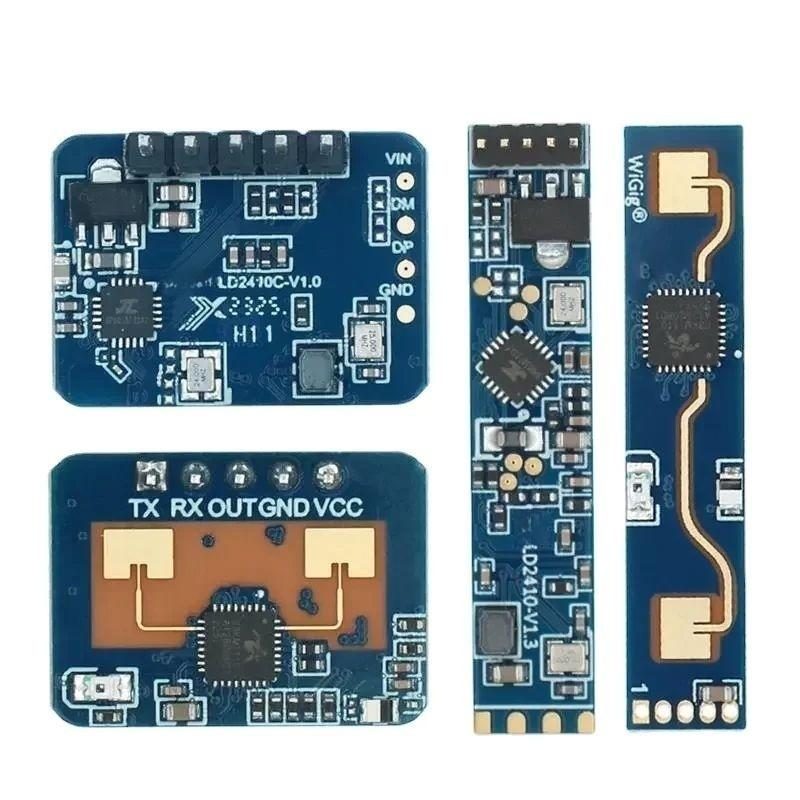

4. Hardware Description

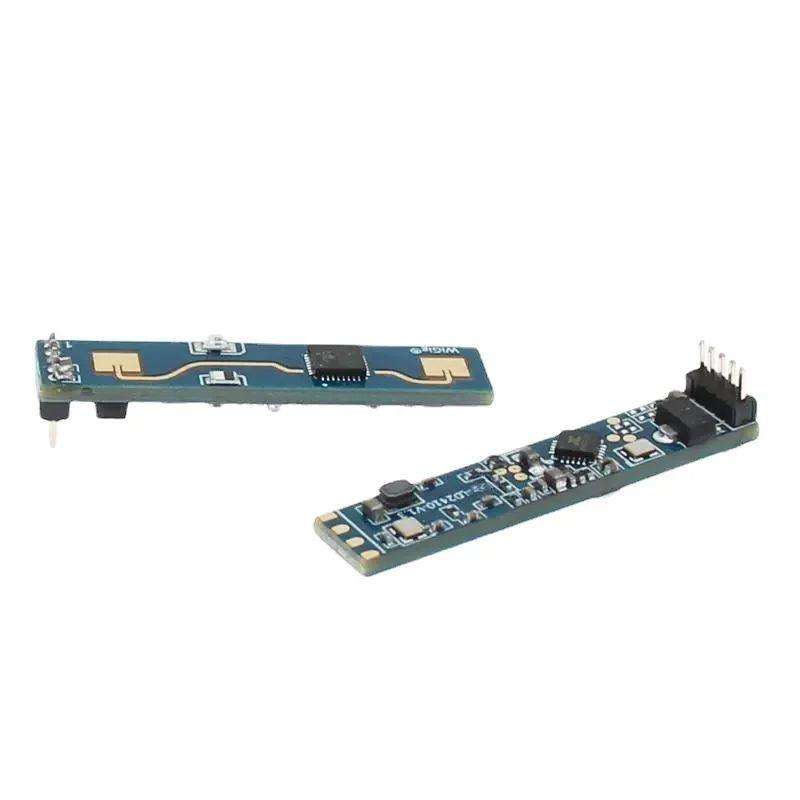

4.1 Features HLK-LD2410(BLE)

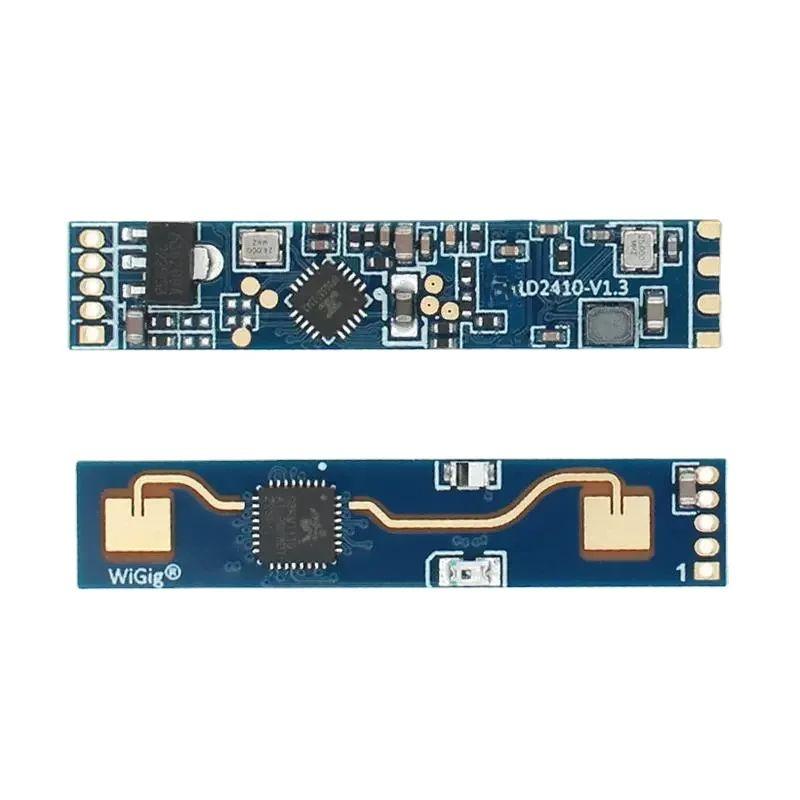

Module size: 7mmx35mm, 5 pin holes are reserved in the hardware (the factory default does not match the pins)
The pin hole diameter is 0.6mm, and the pin spacing is 1.27mm.

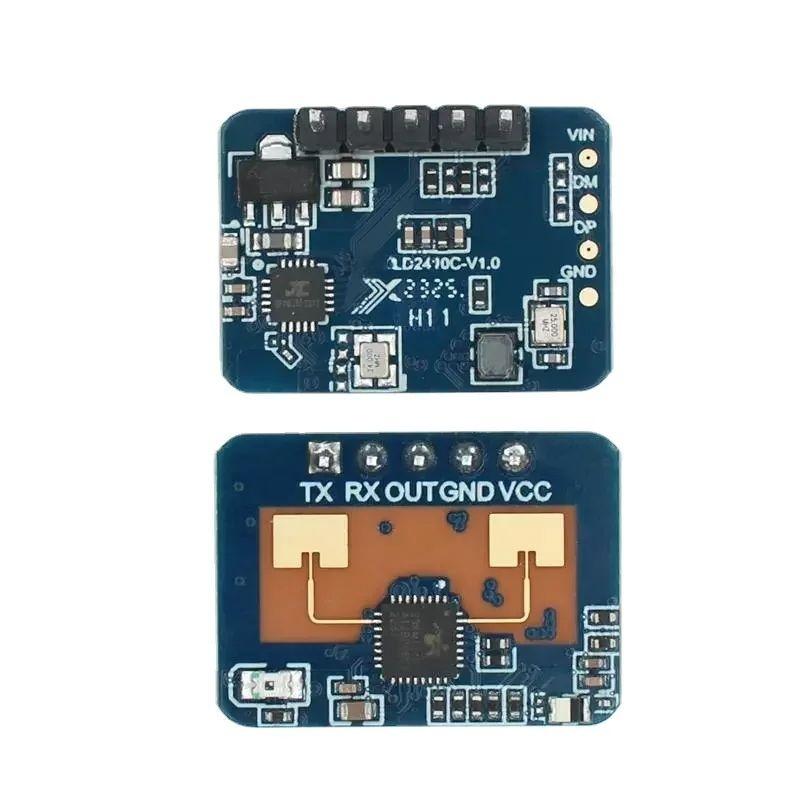

HLK-LD2410C
4.2 Pin definition
5. Visual Configuration Tool Description
In order to facilitate the user to test and configure the module quickly and efficiently, a PC configuration tool is provided. The user can use this tool software to connect the serial port of the module, read and configure the parameters of the module, and receive the detection results reported by the. module. Data, and real-time visual display, which greatly facilitates .the use of users.
How to use the host computer tool:
Use the USB to serial port tool to connect the module serial port correctly
Select the corresponding serial port number in the host computer tool, set the baud rate to 256000, select the engineering mode, and click to connect the device
After the corresponding is successful, click the start button, the right graphical interface will display the test results and data
After connecting, if the start button is not clicked, or click stop after starting,the mode parameter information can be read or set
Note:The parameters cannot be read and configured after clicking start, and configuration can only be performed after stopping.
The interface and common functions of the host computer tool are as follows:
The ball is the target state output indication: red means that there is a moving target, and purple means that there is a stationary target:,Green means no one.
6. Bluetooth instructions (LD2410(BLE) / LD2410C)
6.1 Install software (English version)
Currently the APP supports Android and IOS platforms, you can download it from this link:https://www.pgyer.com/Lq8p(Android)
You can also go to major app stores to search for "HLKRadarTools" and install it.
6.2 Instructions
Open the app, and the app searches for nearby radar devices. The broadcast name of the device is "HLK-LD2410B_xxxx" (xxxx is the last four digits of the mac address). After the module is successfully connected, you can view the radar information, or debug and save the parameters.
The use distance of the APP should not exceed the Bluetooth signal range (within 4 meters).
The process of modifying the radar parameters of the Bluetooth APP is the same as that of the PC host computer tool.
6.3 Turn on bluetooth again
The Bluetooth function of HLK-LD2410(BLE) is enabled by default, and Bluetooth can be turned off or turned on through the serial port protocol (see HLK-LD2410(BLE) serial port communication protocol.pdf). If the bluetooth has been turned off, or the serial port cannot be used, the bluetooth can be turned on again after the module is powered off and then powered on for more than 5 times within 2~3s.
