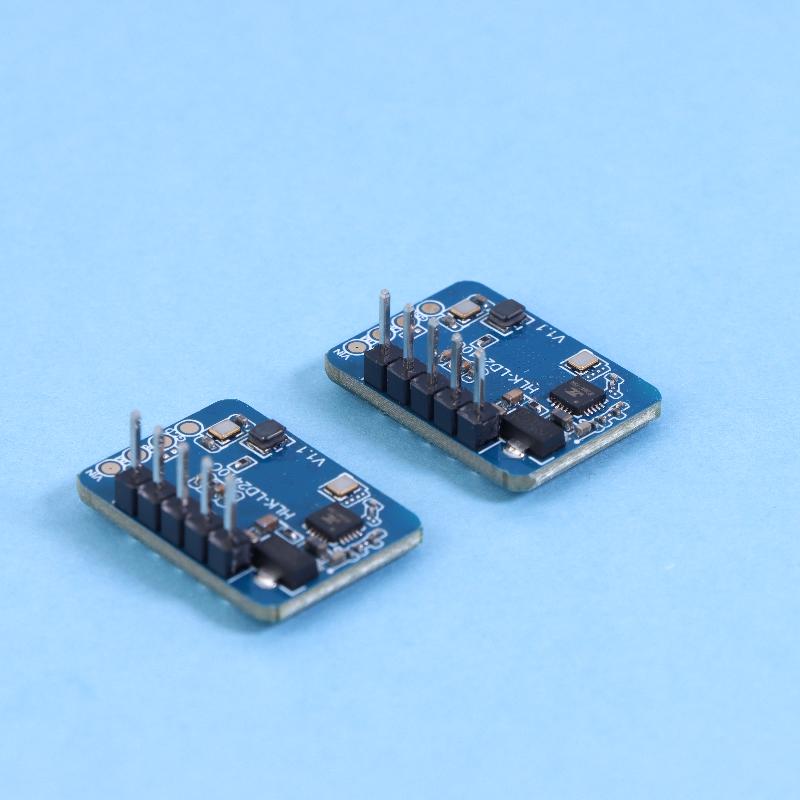

The 24G Sensor Radar Ld2410C Radar Module Is Square-Packaged And Equipped With An Intelligent Sensor And Bluetooth

*100% Brand New and high quality. Style: LD2410C human body sensing module 2. Material: Others 3. Color: As shown in the figure 4. Size: 16*22mm 5. Packaging: OPP bags 6. The packaging includes: 1PC** according to the picture you choose Notice: 1. Due to manual measurement, please allow for slight differences. The above dimensions are for reference only. Please note that due to reasons such as lighting effects, brightness, and display setting contrast, the tones of the on-site color photos may slightly differ from those of the actual project. Product features Frequency: 24G-24.25GHz Modulation method: FMCW Detection distance: Adjustable from 0.75 to 6 meters Detection Angle: ±60° Power supply: 5V Current: ~79mA Output serial port level: 3.3V Scanning bandwidth: 250MHz(Compliant with CE/FCC certification standards) Ambient temperature: -40° C to +85° C 1. High sensitivity: The 24GHz human body presence sensing module has high sensitivity, which can quickly and accurately perceive the existence of the human body in a wide range, whether it is static or dynamic. 2. Low power consumption: Compared with traditional sensors, the power consumption of the 24GHz human body sensor module is lower, which greatly improves the service life, reduces the replacement frequency, and saves energy. 3. Temperature and humidity anti-interference: This module can maintain good sensing effect under various environmental conditions, such as high temperature, high humidity, low temperature and harsh environments. Widely used: 24GHz human presence sensor module can be used in various security systems, automatic gating systems, lighting systems, etc., and can play an important role in many occasions. Such as smart homes, smart communities, offices, medical facilities, etc. 5. Easy installation: 24GHz human body presence Induction module is easy to install, no manual calibration, stable work, convenient maintenance, greatly reducing maintenance costs and time. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
