Feature:
1. Wide Compatibility: This digital pressure gauge measures gases, liquids, oils, and other incorrosive media to stainless steel. Suitable for construction, machinery, marine, mining, hydraulic system, and laboratory equipment monitoring

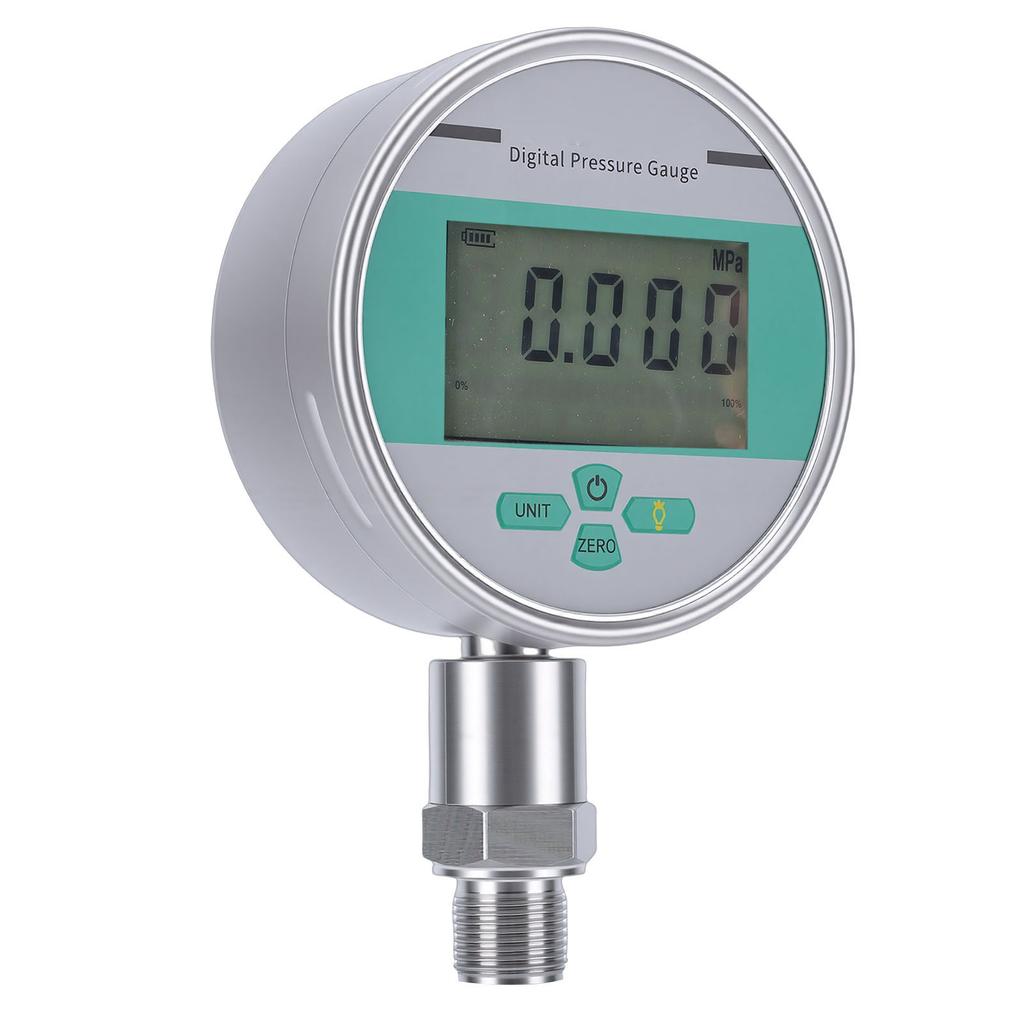

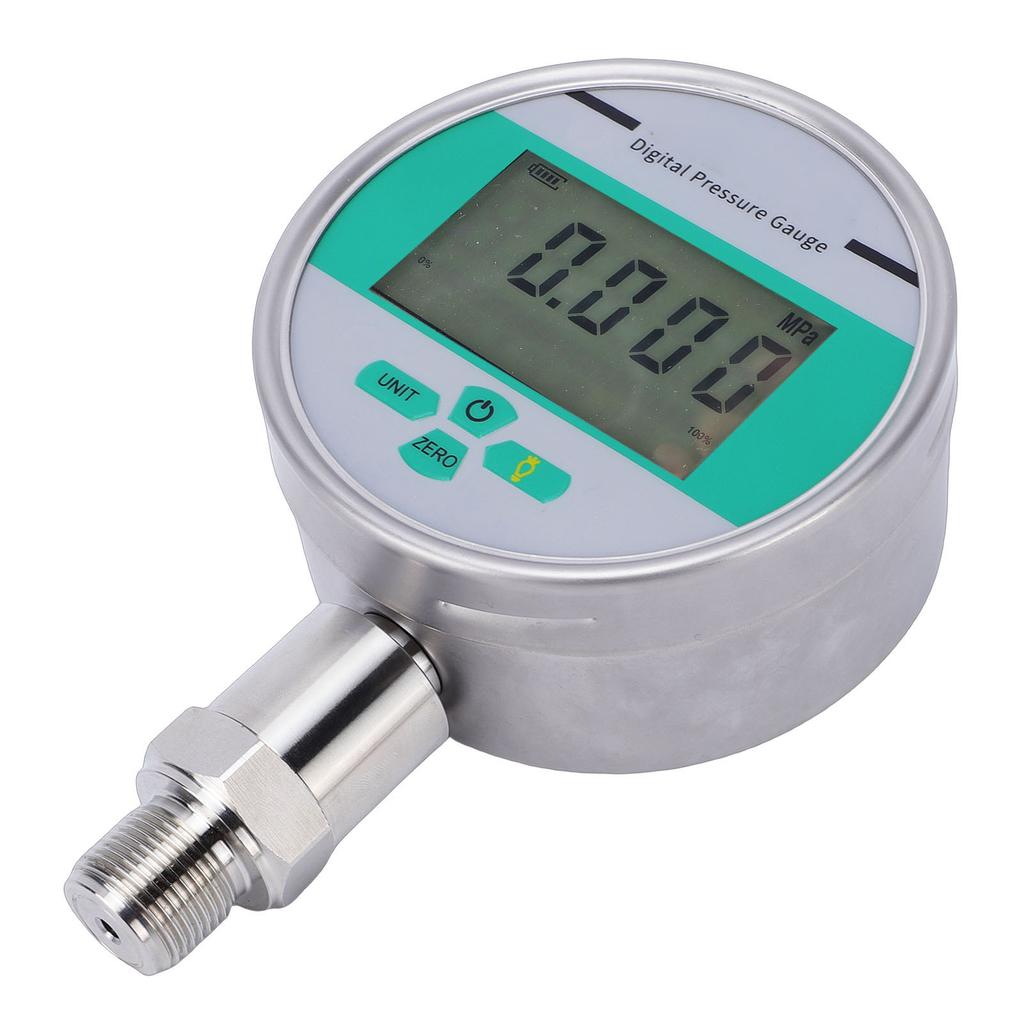

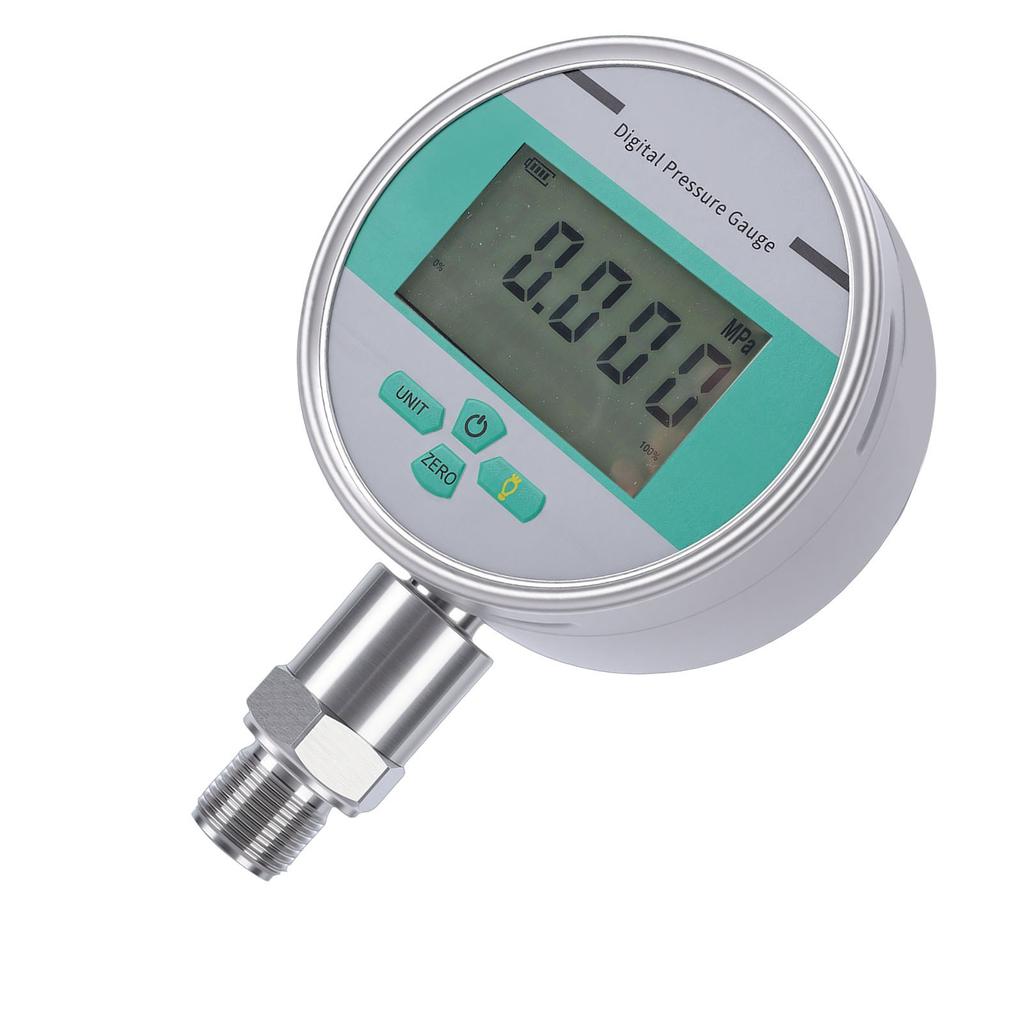

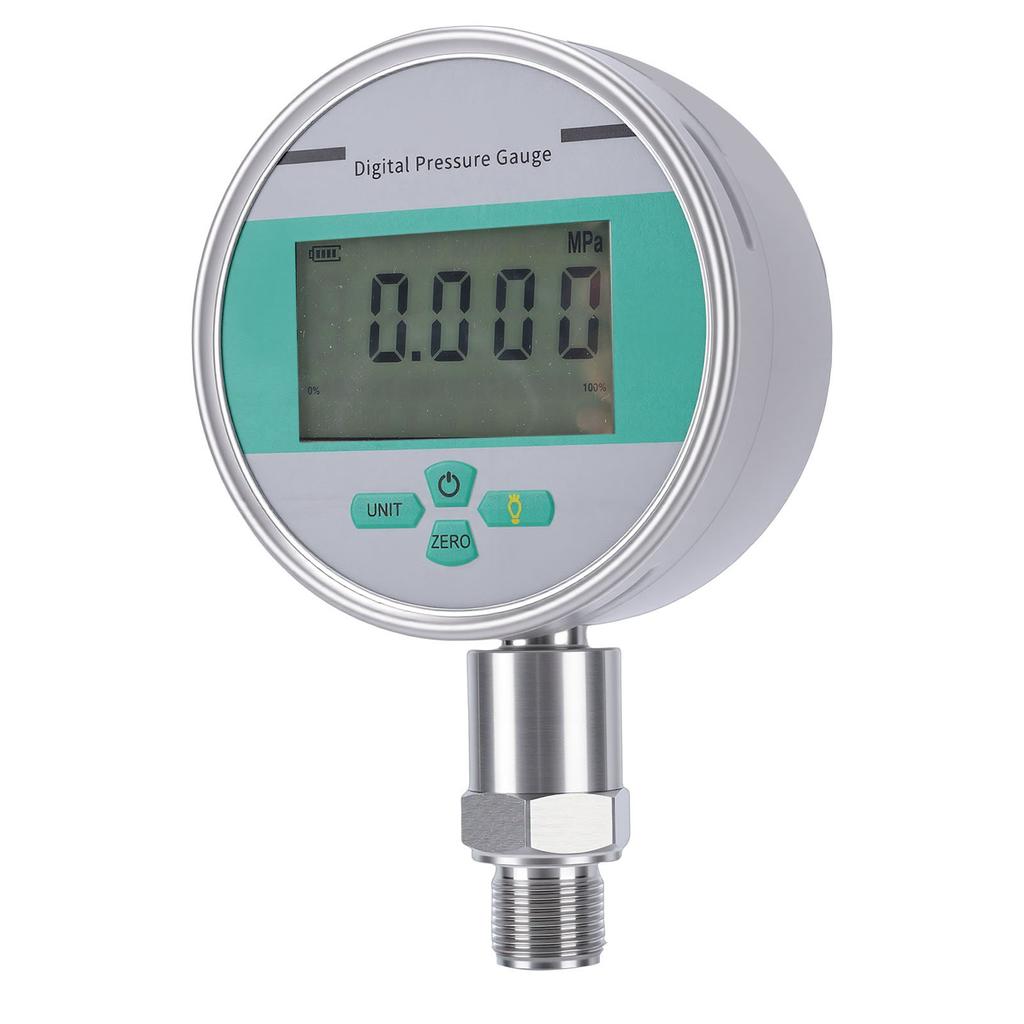

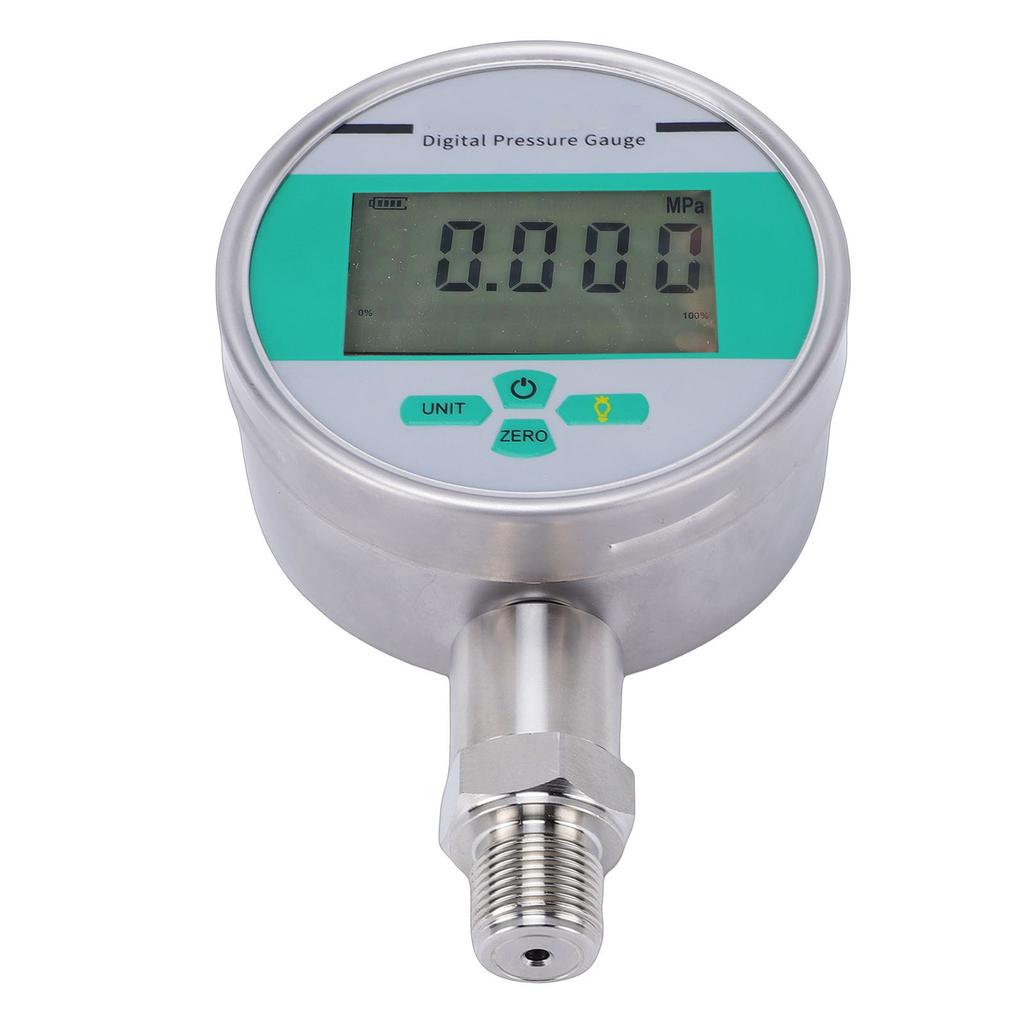

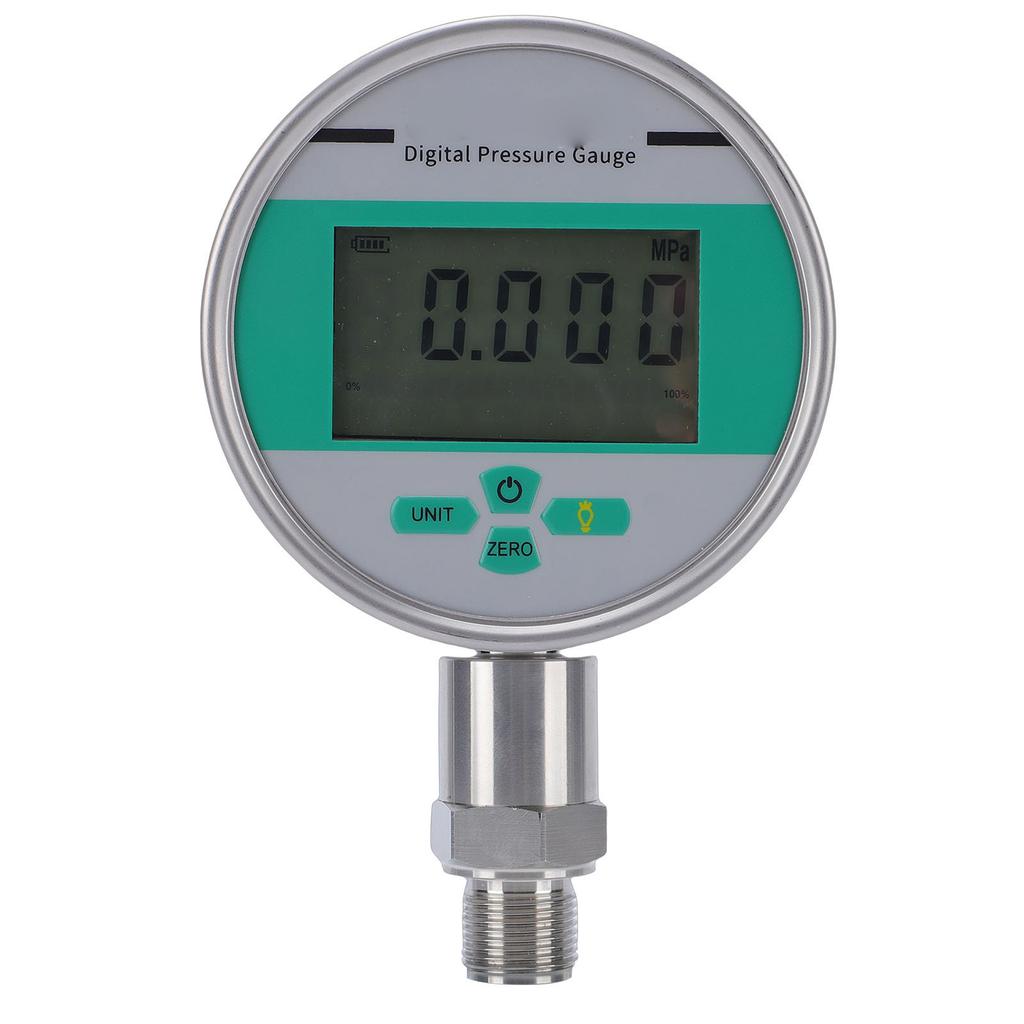

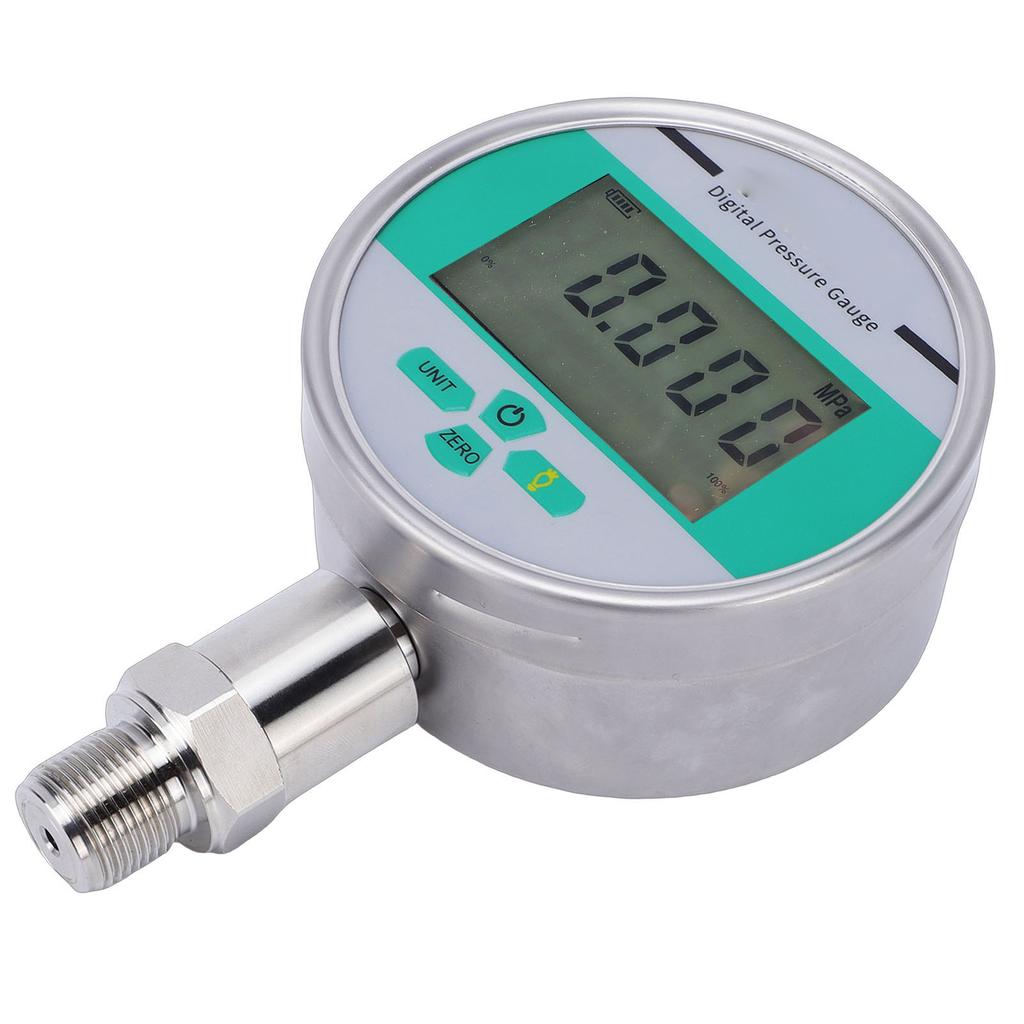

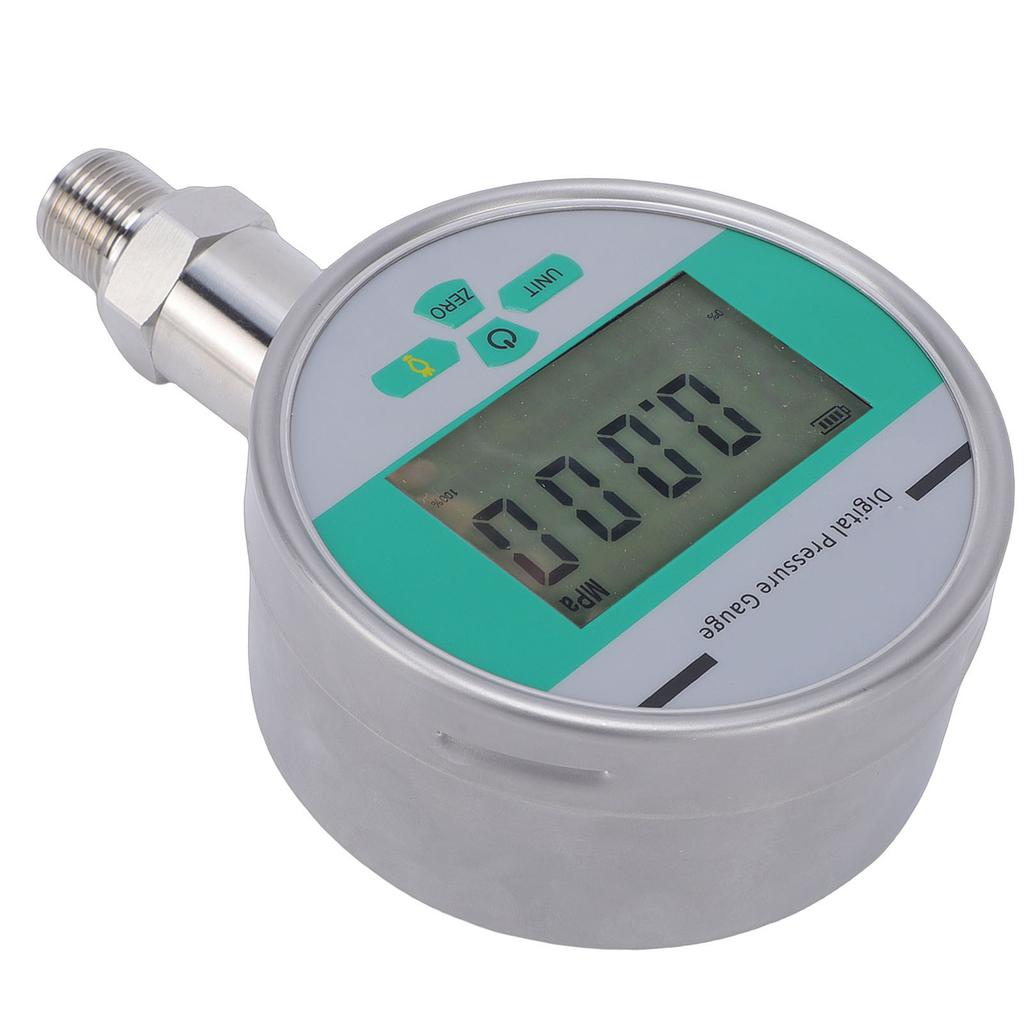

2. Stainless Steel Construction: The pressure meter features a stainless steel case, with IP65 rating, rustproof, water and dust proof, shockproof. Its large LCD screen ensures clear visibility and accuracy of real time pressure readings
3. Precise Measurement: With + 0.4percent accuracy and 0.2percent FS Y stability, this electronic pressure tester provides dependable readings via a accurate piezoresistive pressure sensor. Measures 0 200bar, with 3 times sec sampling rate
4. Versatile Connectivity: The 4 inch dial pressure gauge integrates with standard test ports of engineering machinery via M20x1.5 thread joint. Supports gauge pressure, absolute pressure, and sealed gauge pressure measuring
5. User Friendly Design: Equipped with LCD display and multi units (bar, PSI, MPa, Kgf cm², kPa), this digital pressure tester is powered by 2pcs AAA battery (not included). The backlit function facilitates easy reading in low light conditions
Specification:

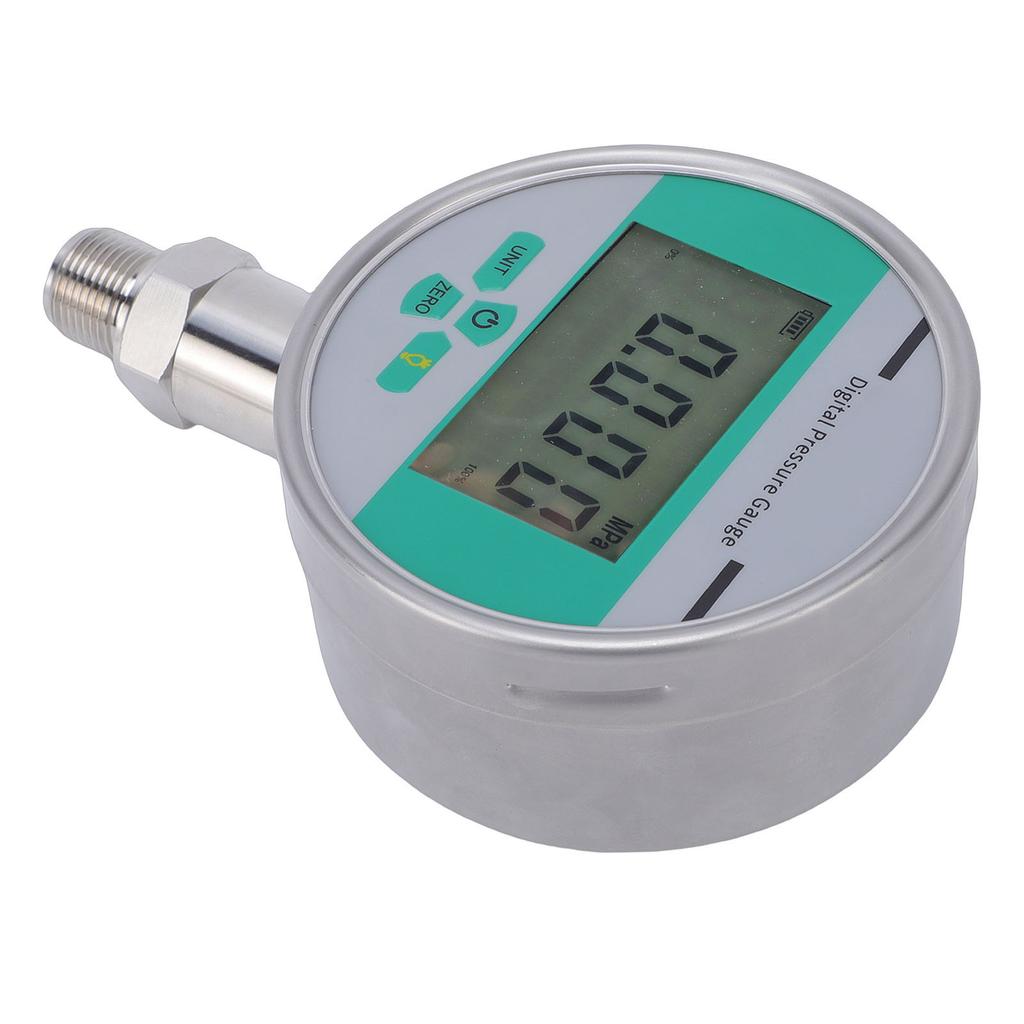

Item Type: Digital Pressure Gauge
Product Material: Stainless Steel
Measurement Range: 0 200bar
Dial Diameter: Approx. 100mm 4in
Thread Size: M20x1.5 Thread
Display Unit: bar, PSI, MPa, Kgf cm², kPa
Pressure Type: Gauge pressure, absolute pressure, sealed gauge pressure
Overload Capacity: <40MPa, 150percent ; more than 40MPa, 120percent
Accuracy: + 0.4percent
Long Term Stability: 0.2percent FS Y
Power Supply: 2 x AAA Battery (not included)
Battery Life: more than 6 months (depending on specific conditions)
Sampling Frequency: 3 times sec
Display Screen: LCD Display
Measuring Media: Air, Water, Oil and other incorrosive media to stainless steel
Product Size: Approx. 156 x 102mm 6.1 x 4in.
Package List:
1 x Digital Pressure Gauge
