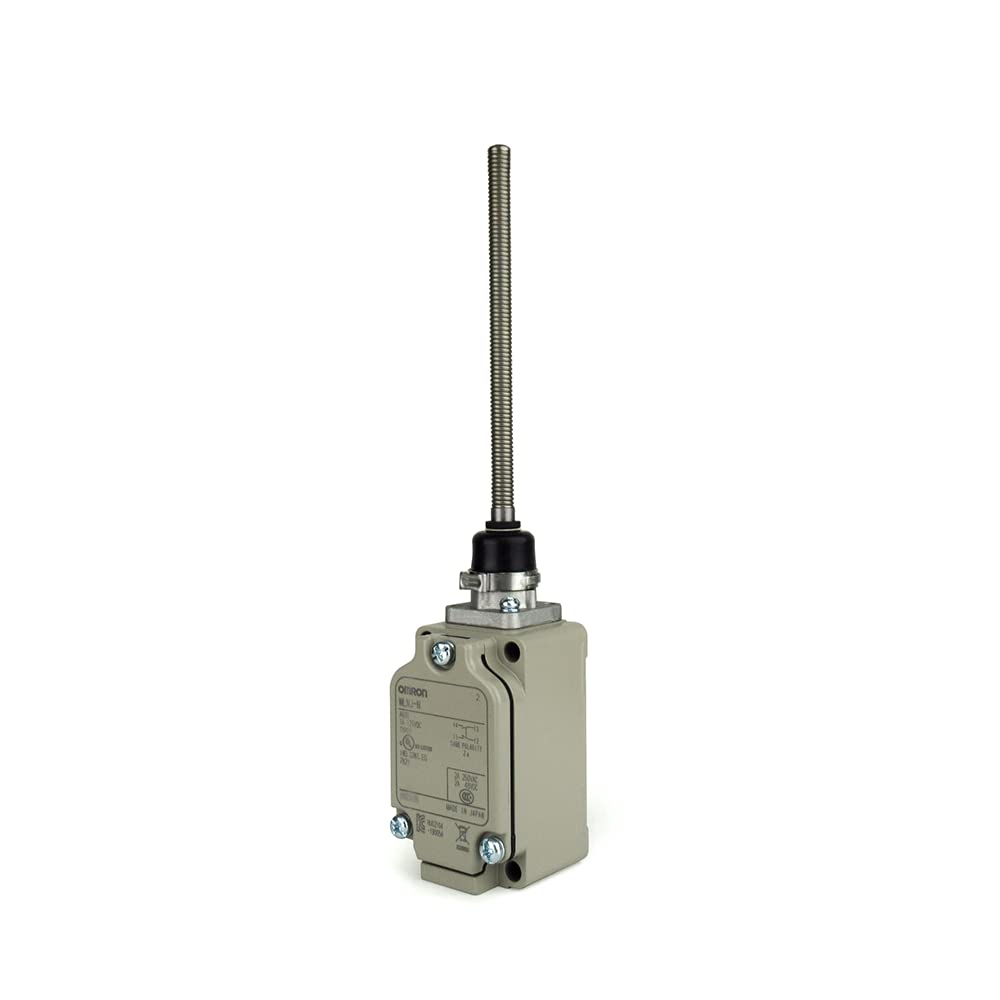

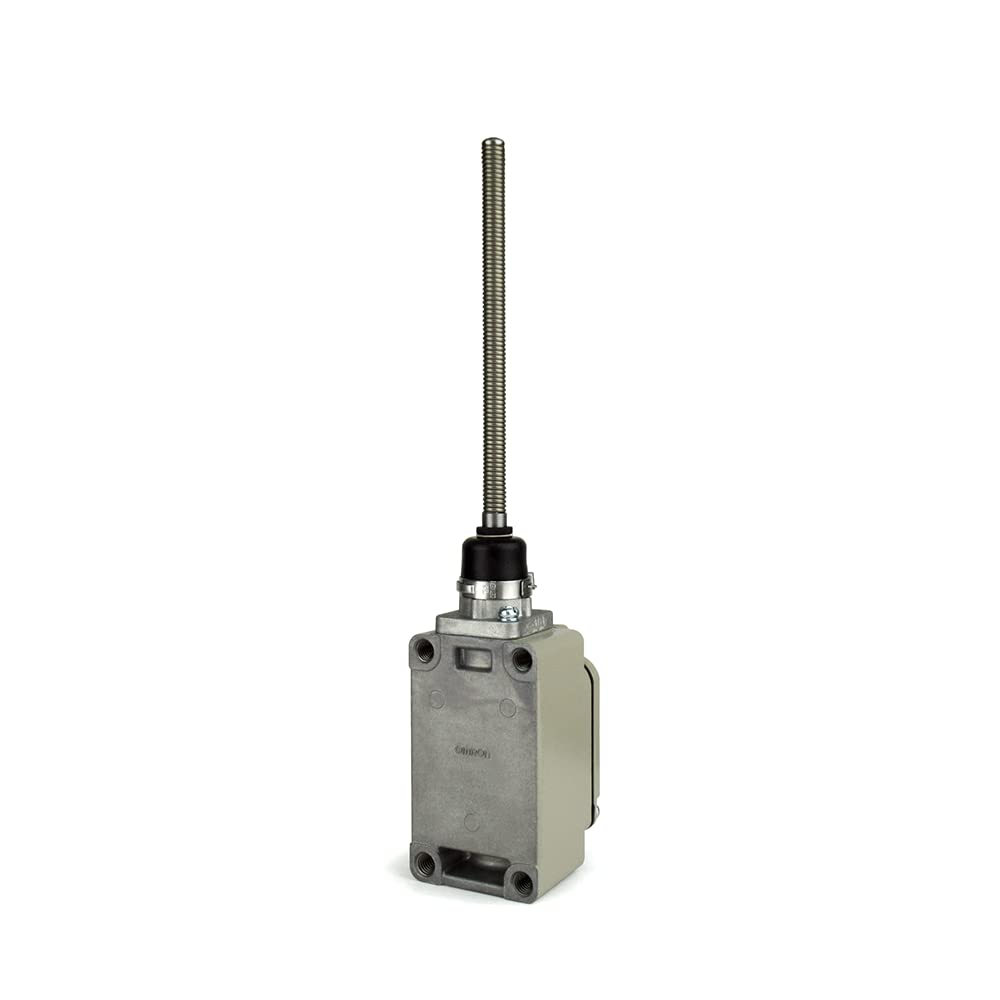

Omron WL-N Type WLNJ-N Limit Switch, 2 Circuits

General-Purpose Type Wide Variety Select from a wide variety of actuators, including rotary lever, plunger, flexible rod, and fork lock lever head styles, to suit the shape and movement of your workpiece. Environmentally Resistant Type Six environmentally resistant types are available. Available in high-sealed, high-sealed, heat-resistant, cold-resistant, corrosion-resistant, and weather-resistant types. Select the type that best suits your site environment. Spatter-Resistant Type Ideal for welding sites Made of stainless steel and resin materials to prevent spatter adhesion. Reduces problems caused by zinc dust generated during welding. Long-Life Type Long-life type suitable for frequent use. Improved wear resistance and sliding performance of the head provide mechanical durability of over 30 million cycles. Common Features Double-circuit double-break contact Double-circuit double-break ensures reliable circuit interruption. Standard/Holding Type (WL-N) WL-N/WL Feature 11 High-Sensitivity/High-Precision Type (WL) WL-N/WL Feature 12 IP67 Protection Operation Indicator Type for Easy Daily Inspection Indicates operation status with a neon lamp or LED. Simplifies startup checks and maintenance. Sensor I/O Connector Type to Match Wiring Specifications Available in direct connector and pre-wired connector types. Easy limit switch replacement. A wide variety of two-circuit limit switches to suit your environment and application. Series: WL-N Features: Two-Circuit Limit Switch Actuator Type: Coil/Spring (Spring Diameter φ6.5) Operation Travel (PT): 20±10mm Inrush Current (Normally Closed): Max. 30A (Max. 15A) Inrush Current (Normally Open): Max. 20A (Max. 10A) Minimum Applicable Load: 5VDC, 1mA Resistive Load, P Level
