Battery Included : No
High-concerned chemical : None
Theory : Temperature Controller
Display Type : DIGITAL
Power Type : Charger
Certification : None
Model Number : ETC-961
Origin : Mainland China
Max Measuring Temperature : 100°C - 119°C
Style : Standing and Wall Hanging
Is Smart Device : No
Use : Household
Cable length : 2m
Display Size : 1.9 Inches & Under
Power supply : 230VAC±10% 50/60Hz
Rated current of the relays : 10/220VAC
Use temperature : -5℃~55℃
Relative humidity : 10%-90%RH(not condensing)
Storage temperature : -30℃~85℃

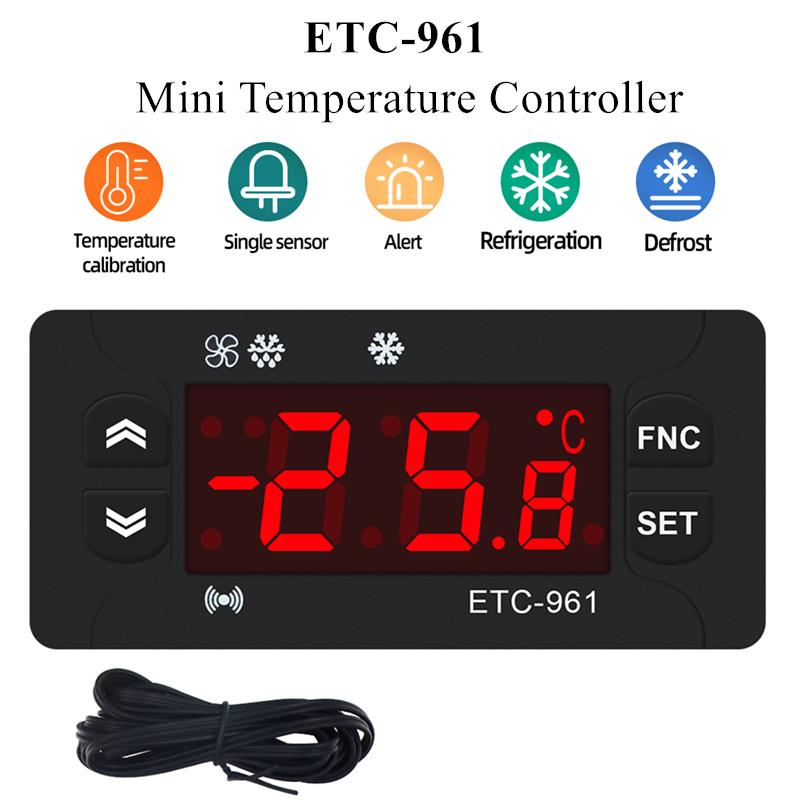

ETC-961 Mini Temperature Controller Microcomputer thermostats Digital Thermostat Refrigeration Alarm 220V NTC sensor 40% offWorking conditions:Power supply:230VAC±10% 50/60Hz
Rated current of the relays(refrigeration):10/220VAC
Use temperature:-5℃~55℃Relative humidity:10%-90%RH(not condensing)
Storage temperature:-30℃~85℃
Specification:Product;Length 77x Width 34.5xDepth 58(mm)
Mounting size:Length 71× Width 29(mm)
Probe wire length:2M(including the probe)
Technical Parameters:Temperature controlling range:
NTC probe:-50..,110℃(-58..230"F)
PTC probe:-55...140℃(-67..284F)
Display resolution:1℃/0.1℃(with the switch mode between integer and decimal)
Accuracy:NTC:±0.5℃(-30℃-50℃),other,±1℃
PPT:±1℃(-30℃-50℃),other,±2℃
Probe type:NTC(-50℃-120℃) PTC(-50℃-150℃)
Caution:1.Confirm whether the power voltage meets the requirements of controller power supply,or else,the instrument might work improperly even burnout.
2.Probe down-leads and power wires should be kept for a proper distance to avoid possible interference.
