Product Introduction
Product Introduction: ● This ultra-thin, compact device is only 8.5mm thick. ● It is CE-certified. ● It complies with the IEC 61010 CAT II 500V safety standard. From Amazon: ● This is a slim, 8.5mm-thick digital tester in a notebook-style design. ● It is a multi-function device capable of measuring capacitance, frequency, and duty ratio. ● It features auto power-off, data hold, and relative readout functions. Please read the following cautions (disclaimer) carefully. ● Delivery times cannot be specified. Thank you for your understanding. See more.
From Amazon:

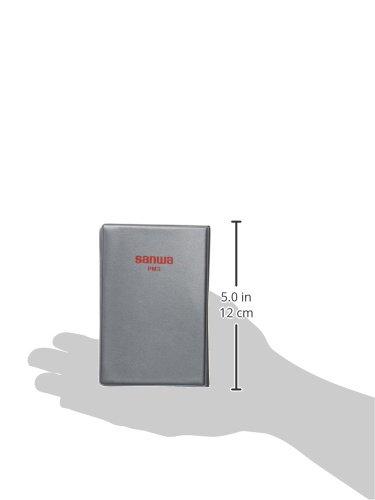

● This is a slim, 8.5mm-thick digital tester in a notebook-style design.

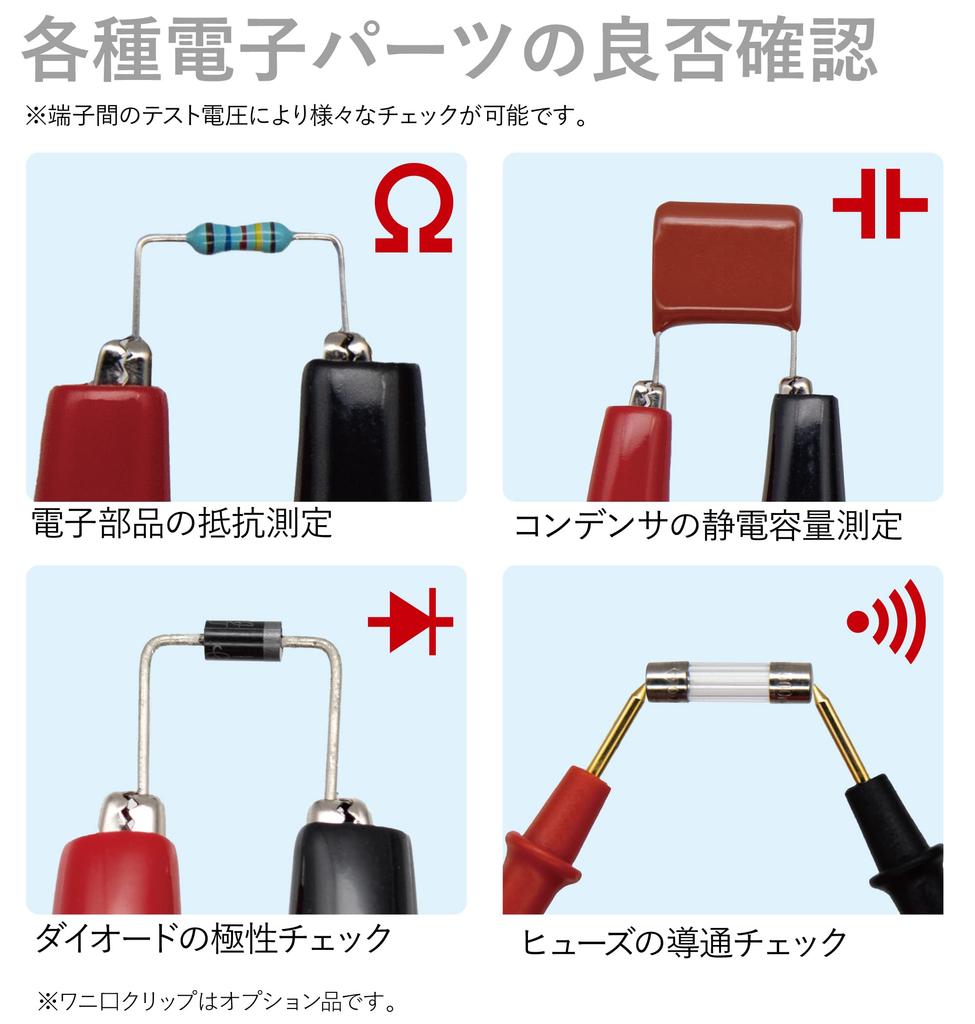

● It is a multi-function device capable of measuring capacitance, frequency, and duty ratio.
● It features auto power-off, data hold, and relative readout functions.
Please read the following cautions (disclaimer) carefully.
This product has been opened, but is unused. It comes with a 3-year warranty.
◆DC Voltage (V): 400mV/4/40/400/500V ◆AC Voltage (V): 4/40/400/500V
◆Resistance (Ω): 400/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ◆Capacitor Capacity (μF): 5nΩ/50nΩ/500nΩ/5μ/50μ/200μF
◆Sine Wave AC Frequency (Hz): 9.999/99.99/999.9/9.999kΩ/60.00kHz ◆Duty Cycle: 0.1-99%
◆Continuity: Buzzer sounds at 10Ω-120Ω (Open Circuit Voltage: 0.4V) ◆Diode Test: Open Circuit Voltage Approx. 1.5V
◆Display: Numerical Display 4000; Sample Rate: Numerical Display 3 times/second
