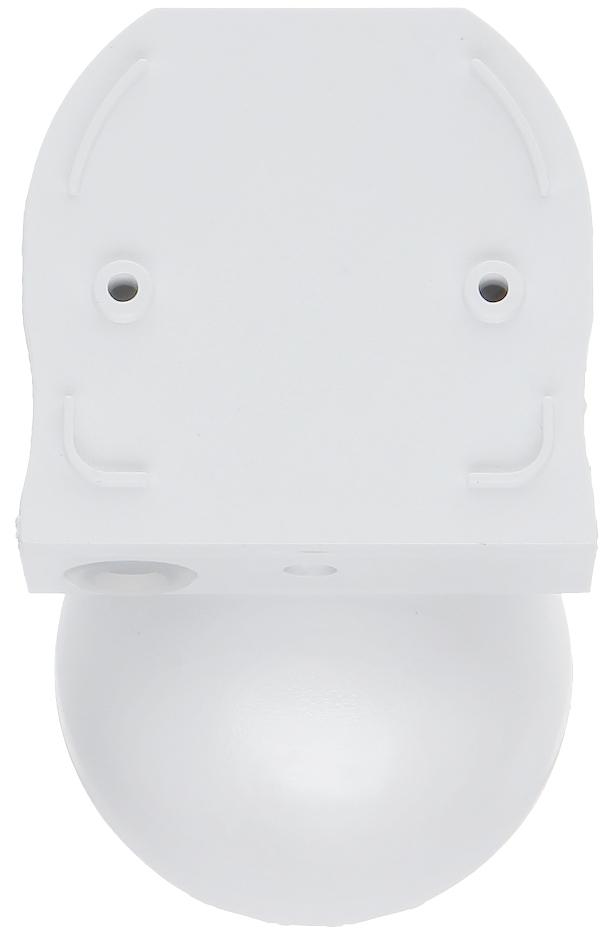

Pir Sensor Md-08B7 Ac 230V For Home Lighting Control

As the official Polish distributor of EURA equipment in Poland, we guarantee that:

✅ We sell only original EURA

✅ All goods from our auctions are available IMMEDIATELY

✅ We offer full WARRANTY support for goods purchased from us…

✅ … as well as full POST-WARRANTY support!

The MD-08B7 motion sensor is designed to control lighting or other electrical devices powered by 230V AC, indoors and outdoors. Detecting motion within the sensor's field of view applies power to the receiver for a period determined by the setting of the built-in time delay.

Additionally, the device is equipped with a light intensity sensor and a controller for the highest light intensity at which the sensor is activated. The maximum load of the relay used in the sensor is 1200W for a resistive load or 300W for an inductive load.

• Sensor type: Passive infrared (PIR)

• Detection angle: 180 °

• Range: 12 m

• Application: For outdoor use

• Sensitivity adjustment: 3 ... 2000 Lux (manual adjustment)

• Recommended mounting height: 1.8 ... 2.5 m above the floor (wall mounting)

• Lighting switch-on time adjustment: 10 s ... 12 minutes

• Maximum output load: 1200 W (resistive load) 300 W (inductive load)

• Pet immunity: None

• Power supply: 220 V ... 240 VAC@ 50Hz

• Protection class: IP44

• Color: White

• Weight: 0.15 kg

• Dimensions: 83 x 91 x 64 mm

• Operating temperature: -18 °C ... 40 °C

• Manufacturer / Brand: EL HOME

• Warranty: 2 years

PIR SENSOR MD-08B7 AC 230V FOR EL HOME LIGHTING CONTROL
