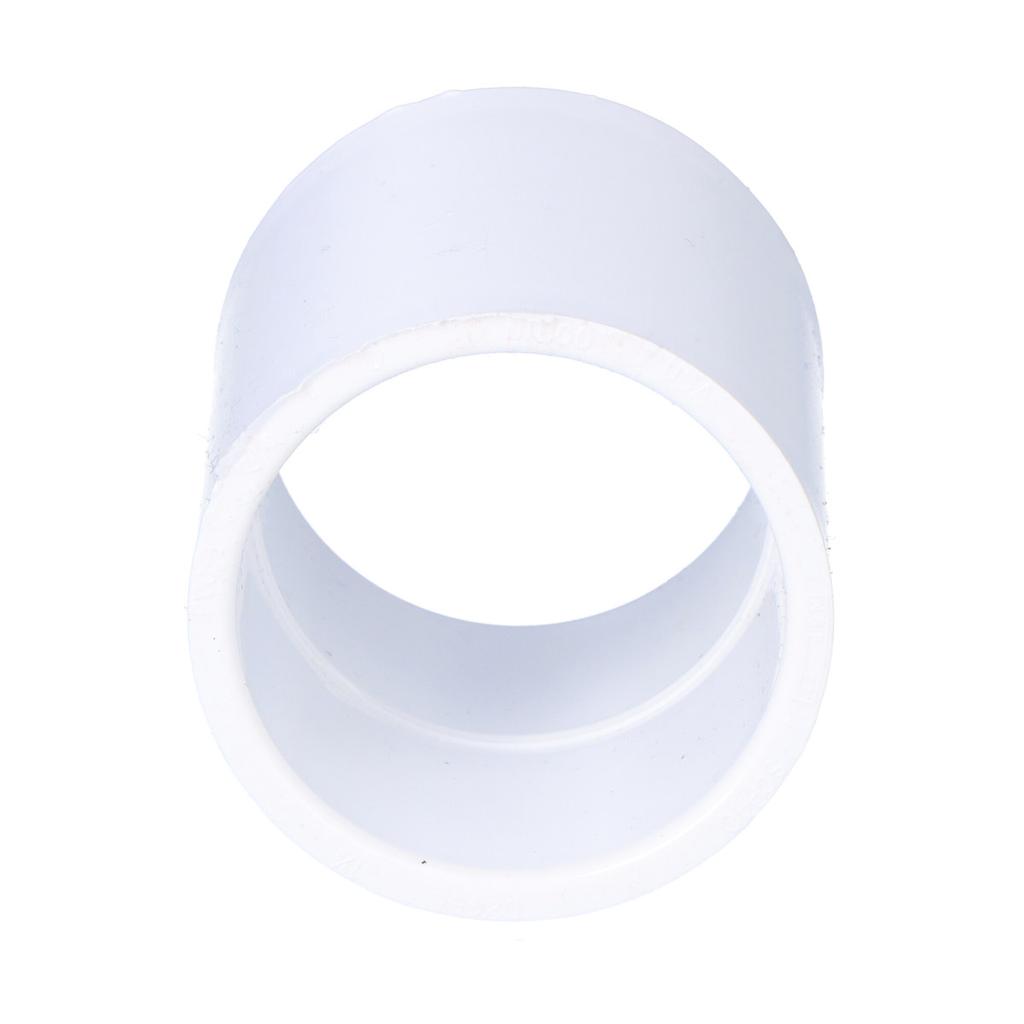

• PVC coupling KW/KW 6/4" MATERIAL PVC - polyvinyl chloride DIMENSIONS from 1/2" to 8" (inches) produced in the IPS steel pipe dimensional system APPLICATION Cold water installations, Air-conditioning installations, Industrial installations for various types of chemical compounds.
• Working pressure at a temperature of +23oC (for the Sch 40 type series according to ASTM): 4.14 for 1/2?, 3.30 for 3?, 3.1 for 1?, 2.55 for 1 1?, 2.28 for 1 1?, 1.93 for 2?, 2.07 for 2 1?, 1.79 for 3?, 1.52 for 4?, 1.24 for 6?, 1.10 for 8?.
• Working pressure at +25oC (for pipes according to PN-EN 1452): 1.5 for PN15 Ω (from 1Ω to 3Ω), 1.2 for PN12 - (4Ω), 0.9 for PN9 Ω (from 6Ω to 8Ω) Pipes and fittings in the PVC system are connected using aggressive adhesives.
• The time to make such a connection depends on the installation temperature and does not exceed 1 min.
• Additionally, there are threaded and flanged elements allowing for connection to any installation system.
• Threaded: no
• Color: White
• Material: PVC
• Area of application: Pressure installation for drinking water
• Dimension reduction: no
• Type of connection: Glued
• Outer diameter: 48.1 mm
• Type of fitting: Sleeve
