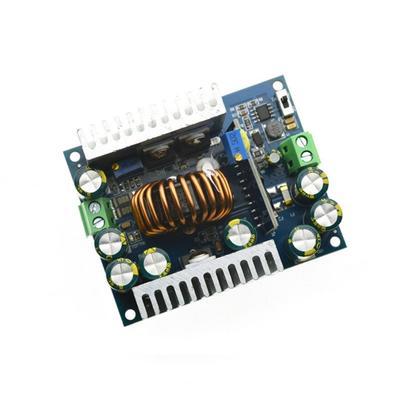

Feature:
1. Resin + Aluminum Alloy: The boost module is made of high quality resin and aluminum alloy, which is durable and easy to use
2. Integrated Design: The boost plate is fixed above the radiators, the design is reasonable, and the radiators and are integrated in the design
3. Inductance Magnetic Rings: 27mm iron silicon aluminum magnetic rings, 1mm double wire wound inductor, filter capacitor, input 1 1000uF63V electrolytic capacitor, output 2 470uF100V electrolytic capacitors, and the quality of the boost output power supply is better
4. More Convenient Output: On board power switch, power work indicator, with voltage adjustment and current adjustment potentiometers, making the output more convenient, and the output voltage and current can be adjusted at any time
5. Working Long Time: The input and output use 8500 terminals, which have strong current capacity and ensure long term reliable work
Specification:
Item Type: DC to DC Boost Module
Material: Resin, Aluminum Alloy
Input Current: 15A
Output Current: 10A (Adjustable)
Short Circuit Protection: Fuse
Size: Length: Approx. 85mm 3.35in, Width: Approx. 62mm 2.44in.
Package List:
1 x Adjustable Boost Module
Note:
When you test whether the output voltage is greater than the input voltage, please adjust the potentiometer clockwise, the output voltage will rise, please do not adjust the module counterclockwise, will be damaged or even damaged in the case of high input voltage!Resin + Aluminum Alloy: The boost module is made of high quality resin and aluminum alloy, which is durable and easy to use
Integrated Design: The boost plate is fixed above the radiators, the design is reasonable, and the radiators and are integrated in the design
Inductance Magnetic Rings: 27mm iron silicon aluminum magnetic rings, 1mm double wire wound inductor, filter capacitor, input 1 1000uF63V electrolytic capacitor, output 2 470uF100V electrolytic capacitors, and the quality of the boost output power supply
More Convenient Output: On board power switch, power work indicator, with voltage adjustment and current adjustment potentiometers, making the output more convenient, and the output voltage and current can be adjusted at any time
Working Long Time: The input and output use 8500 terminals, which have strong current capacity and ensure long term reliable work
